Drivetrain Control Module -J775- Connector Views

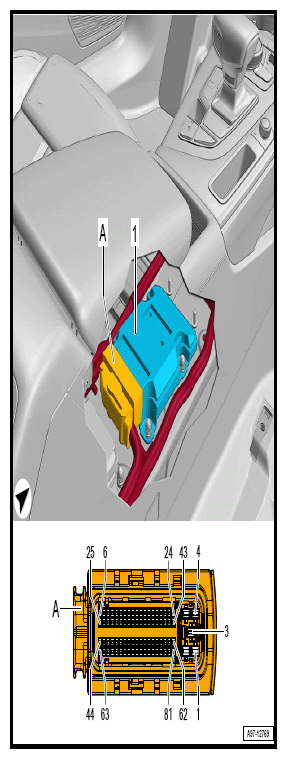

8-PIN CONNECTOR -T81-

Courtesy of AUDI OF AMERICA, LLC

T81 (A)	Designation
1	Terminal 30
2
3
4
5	Terminal 31
6
7
8
9	Left Front Level Control System Sensor G78
10	Left Front Level Control System Sensor G78
11	Left Front Level Control System Sensor G78
12	Right Front Level Control Sensor G289
13	Left Rear Level Control System Sensor G76
14	Left Rear Level Control System Sensor G76
15
16
17	Right Rear Level Control System Sensor G77
18	Right Rear Level Control System Sensor G77
19	Right Rear Level Control System Sensor G77
20
21
22
23
24
25
26
27
28
29
30
31	Right Front Level Control Sensor G289
32	Left Rear Level Control System Sensor G76
33
34	Right Front Level Control Sensor G289
35
36
37
38
39
40
41
42
43
44	Data Bus On Board Diagnostic Interface J533/FlexRay-Bus
45	Data Bus On Board Diagnostic Interface J533/FlexRay-Bus
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62	Terminal 15
63	Driver assistance systems front camera R242/FlexRay-Bus or Steering Column Electronic Systems Control Module J527/FlexRay-Bus
64	Driver assistance systems front camera R242/FlexRay-Bus or Steering Column Electronic Systems Control Module J527/FlexRay-Bus
65
66
67
68	Right Rear Dampening Adjustment Valve N339
69	Right Rear Dampening Adjustment Valve N339
70
71
72	Left Rear Dampening Adjustment Valve N338
73	Left Rear Dampening Adjustment Valve N338
74
75
76	Right Front Dampening Adjustment Valve N337
77	Right Front Dampening Adjustment Valve N337
78
79
80	Left Front Dampening Adjustment Valve N336
81	Left Front Dampening Adjustment Valve N336
