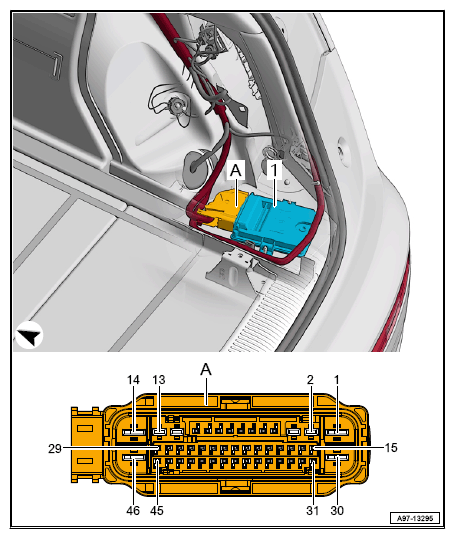

Reducing Agent Metering System Control Module -J880- Connector Views
46-PIN CONNECTOR -T46A-
| T46a (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Heater 2 for reducing-agent tank (heater circuit 3) Z167 in Reducing agent metering system delivery unit GX19 |
| 3 | Heater for reducing-agent tank (heater circuit 1) Z102 in Reducing agent metering system delivery unit GX19 |
| 4 | |
| 5 | |
| 6 | Reducing Agent Temperature Sensor G685 in Reducing agent metering system delivery unit GX19 |
| 7 | Reducing Agent Metering System Pressure Sensor G686 in Reducing agent metering system delivery unit GX19 |
| 8 | Heater for reducing-agent line (heater circuit 2) Z104 |
| 9 | Reducing Agent Metering System Pressure Sensor G686 in Reducing agent metering system delivery unit GX19 |
| 10 | Reducing agent quality sensor G849 in Reducing agent metering system delivery unit GX19 |
| 11 | |
| 12 | Heater 2 for reducing-agent tank (heater circuit 3) Z167 in Reducing agent metering system delivery unit GX19 |
| 13 | Heater for reducing-agent tank (heater circuit 1) Z102 in Reducing agent metering system delivery unit GX19 |
| 14 | Terminal 31 |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | |
| 27 | |
| 28 | |
| 29 | |
| 30 | Terminal 30 |
| 31 | Reducing Agent Pump V437 in Reducing agent metering system delivery unit GX19 |
| 32 | Reducing Agent Tank Sensor G684 in Reducing agent metering system delivery unit GX19 |
| 33 | Reducing Agent Pump V437 in Reducing agent metering system delivery unit GX19 |
| 34 | |
| 35 | Reducing Agent Pump V437 in Reducing agent metering system delivery unit GX19 |
| 36 | |
| 37 | Reducing Agent Temperature Sensor G685 in Reducing agent metering system delivery unit GX19 |
| 38 | Reducing agent quality sensor G849 in Reducing agent metering system delivery unit GX19 |
| 39 | Heater for reducing-agent line (heater circuit 2) Z104 |
| 40 | Reducing Agent Metering System Pressure Sensor G686 in Reducing agent metering system delivery unit GX19 |
| 41 | Reducing Agent Tank Sensor G684 in Reducing agent metering system delivery unit GX19 |
| 42 | |
| 43 | |
| 44 | Extended System CAN-Bus High |
| 45 | Extended System CAN-Bus Low |
| 46 | Terminal 31 |
