Battery Monitoring Control Module -J367- Connector Views

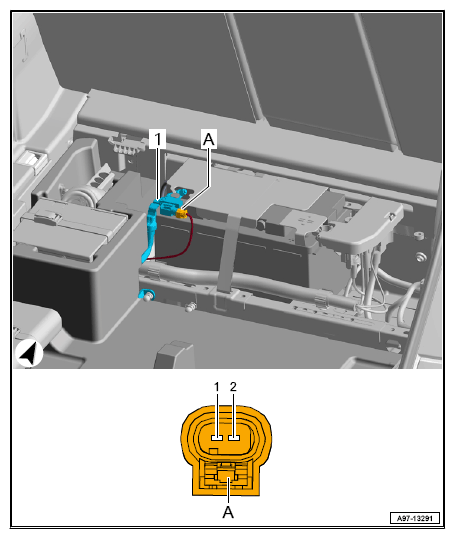

Double connector -T2x-

G12779521Courtesy of AUDI OF AMERICA, LLC
T2x (A) Designation
1 LIN-Bus
2 Terminal 30
