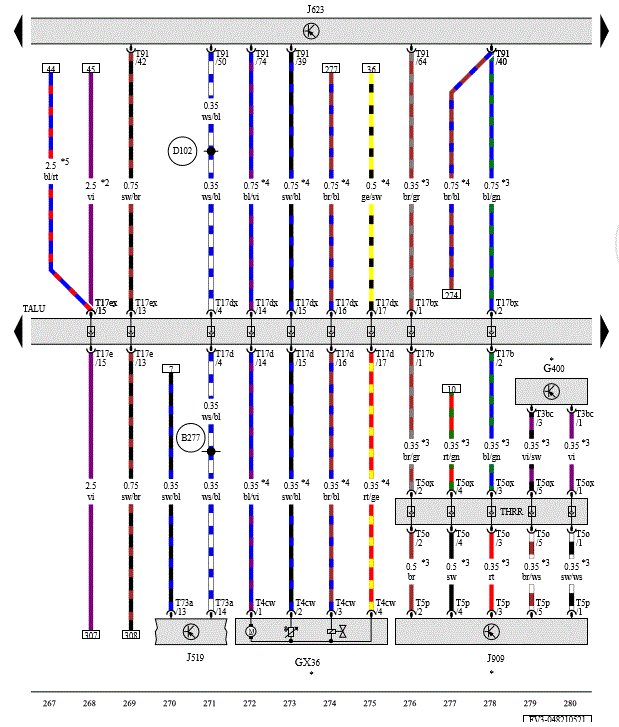

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

G00589475

Courtesy of AUDI OF AMERICA, LLC
