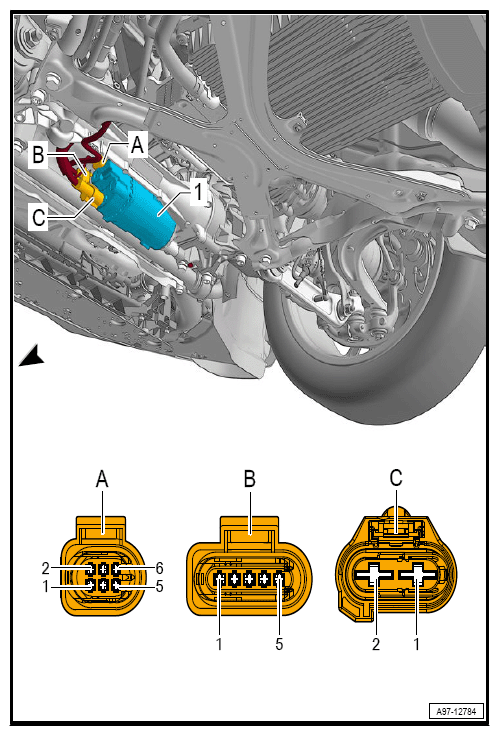

Power Steering Control Module -J500- Location

  1. 1  - Power Steering Control Module -J500-
  2. A  - 6-Pin Connector -T6F-, Brown
  3. B  - 5-Pin Connector -T5BF-, Black
  4. C  - Double Connector -T2EL-, Black
G12767474Courtesy of AUDI OF AMERICA, LLC
