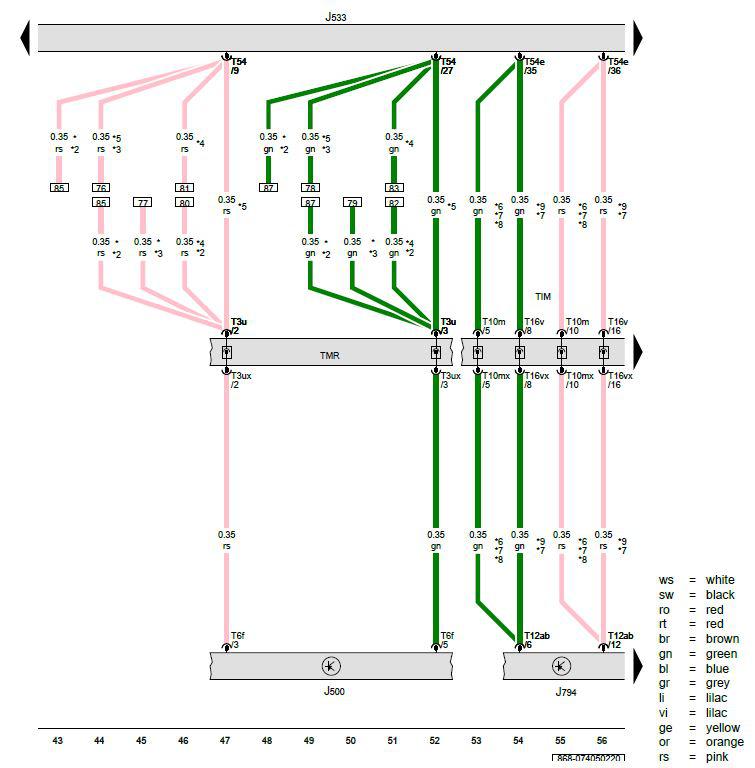

Power Steering Control Module, Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1
J500 - Power Steering Control Module
J533 - Data Bus on Board Diagnostic Interface
J794 - Information Electronics Control Module 1
T3u - 3-Pin Connector, Black
T3ux - 3-Pin Connector, Black
T6f - 6-Pin Connector, Black
T10m - 10-Pin Connector, Black
T10mx - 10-Pin Connector, Black
T12ab - 12-Pin Connector, Green
T16v - 16-Pin Connector, Brown
T16vx - 16-Pin Connector, Brown
T54 - 54-Pin Connector, Black
T54e - 54-Pin Connector, Gray
TIM - Coupling Point in Interior, Center
TMR - Coupling Point in Engine/Motor Compartment, Right
* - For Vehicles with Automatic Transmission
*2 - For Vehicles Without All Wheel Drive
*3 - For AWD Vehicles
*4 - For Vehicles with Automatic Transmission (DSG)
*5 - For Vehicles with a Manual Transmission
*6 - Through November 2019
*7 - Ethernet Connection
*8 - From July 2019
*9 - From December 2019
