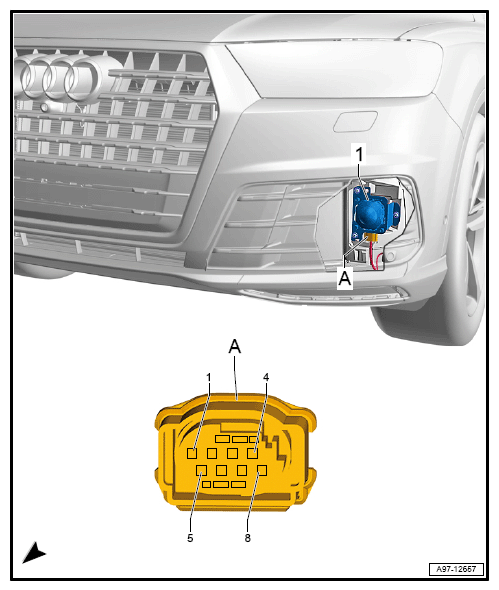

Distance Regulation Control Module 2 -J850- Connector View
8-Pin Connector -T8S- (A)_
| T8s (A) | Designation |
|---|---|
| 1 | Terminal 31 |
| 2 | Distance Regulation Control Module J428/Data-Bus wire (FlexRay-Bus) |
| 3 | Distance Regulation Control Module J428/Data-Bus wire (FlexRay-Bus) |
| 4 | |
| 5 | Data Bus On Board Diagnostic Interface J533/Data-Bus wire (FlexRay-Bus) |
| 6 | Data Bus On Board Diagnostic Interface J533/Data-Bus wire (FlexRay-Bus) |
| 7 | |
| 8 | Terminal 15 |
