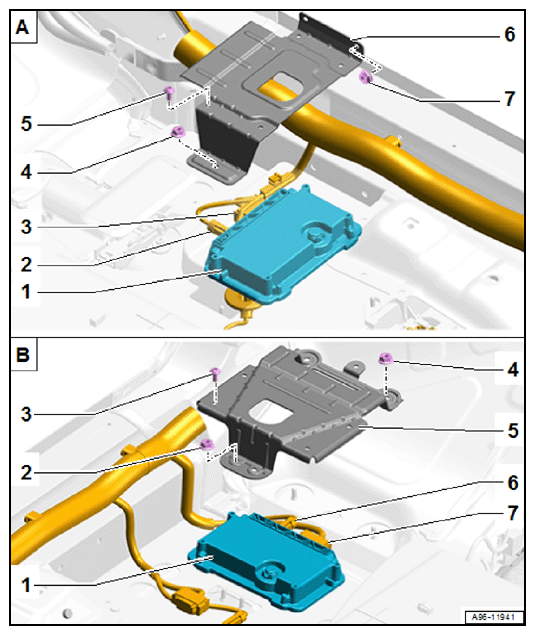

7.1.2 Component Location Overview - Driver Assistance Systems Front Camera, Image Processing Control Module - J851-
- Image Processing Control Module - J851-, LHD
- Image Processing Control Module - J851-
- Removing and Installing. Refer to 7.3 Image Processing Control Module -J851-, Removing and Installing
- Antenna Wire
- Connector
- Nut
- 2.5 Nm
- Nut
- 2.5 Nm
- Quantity: 2
- Bracket
- For the Image Processing Control Module -J851-
- Screw
- 6 Nm
- Quantity: 4
- Image Processing Control Module - J851-
- B - Image Processing Control Module - J851-, RHD
- Image Processing Control Module - J851-
- Removing and Installing. Refer to 7.3 Image Processing Control Module -J851-, Removing and Installing
- Nut
- 2.5 Nm
- Quantity: 2
- Screw
- 6 Nm
- Quantity: 4
- Nut
- 2.5 Nm
- Quantity: 2
- Bracket
- For the Image Processing Control Module - J851-
- Antenna Wire
- Connector
- Image Processing Control Module - J851-
