Distance Regulation Control Module -J428- /Distance Regulation Control Module 2 -J850- RETAINING PLATE, REMOVING AND INSTALLING: Installing

Install in the reverse order of removal. Note the following:

NOTE:

Replace the quick release.

The stud bolts in the bracket are pre-set. If necessary, correct the setting.

If the stud bolts were removed, then the clips on the distance regulation control module must be replaced. Refer to Distance Regulation Control Module -J428- /Distance Regulation Control Module 2 -J850- CLIP, REPLACING .

-- Place the control module on a soft and clean surface.

-- Measure the dimension -a- at all stud bolts using the Digital Caliper :VAS6335 and correct if necessary.

Fig 1: Identifying Dimension -A- To All Studs

Courtesy of AUDI OF AMERICA, LLC

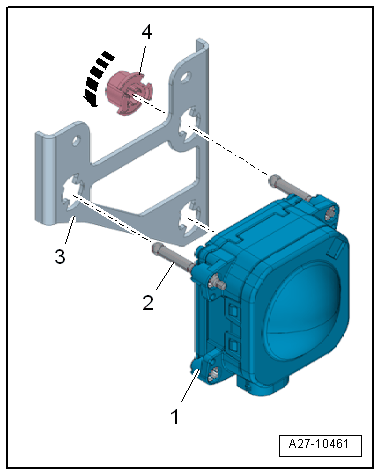

-- Position the retaining plate -3- onto the distance regulation control module -1-.

Fig 2: Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Carefully press the new quick release -4- onto the stud bolt -2-.

-- Turn the quick release clockwise onto the retaining plate to the stop -arrow-.
