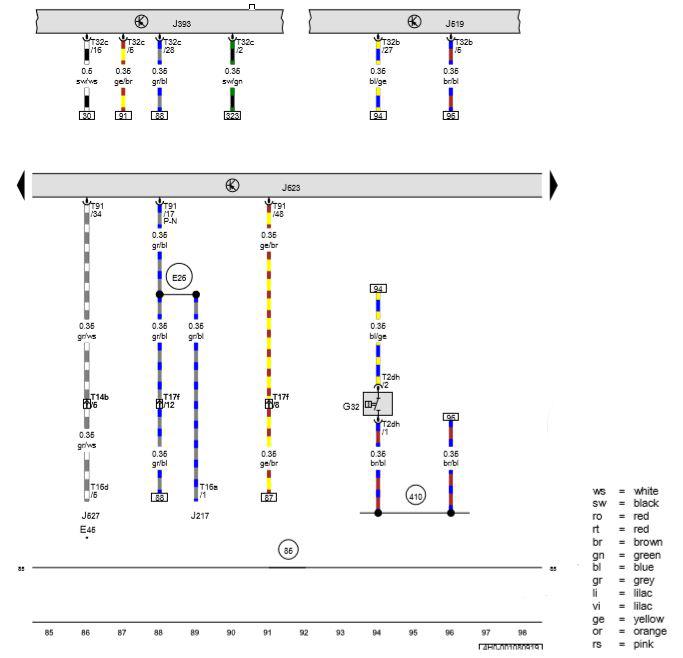

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine Control Module: Notes

GWW4H0-001080412

Courtesy of AUDI OF AMERICA, LLC
