Selector Lever Handle, Removing And Installing: Removing

-- Engage the parking brake.

-- Move the selector lever into "D/S" position.

-- Switch the ignition off.

Audi A1:

Courtesy of AUDI OF AMERICA, LLC

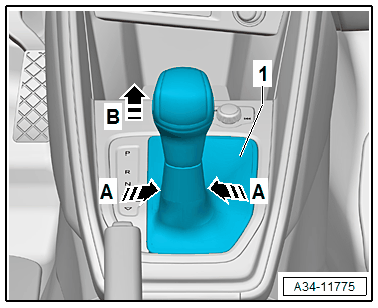

-- Using both hands, reach into the shift lever boot on the right and left sides in direction of -arrows- and unclip the shift cover -1- by pulling it upward in direction of -A arrows-.

Audi TT:

Courtesy of AUDI OF AMERICA, LLC

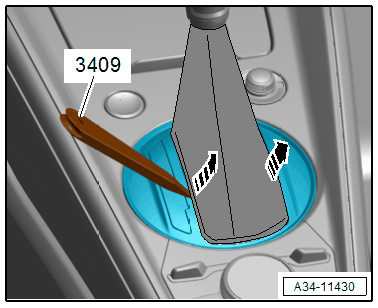

-- Unclip the selector lever boot on both sides using the :3409  in direction of -arrows- and fold it upward.

Audi A3, Q2, Q3:

Courtesy of AUDI OF AMERICA, LLC

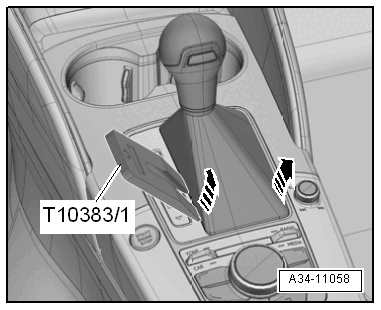

-- Carefully pry out the selector lever boot with the Wedge Set :T10383/1  on both sides -arrows- and then fold it upward.

All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Turn the locking ring all the way in the direction of -arrow A-.

• The tab -1- on the locking ring is offset to the tab -2- on the selector lever handle.

-- Remove the selector lever handle -1- upward with the selector lever boot in direction of -arrow A- without touching the locking button -2-.

Courtesy of AUDI OF AMERICA, LLC
