Engine Speed Sensor -G28-, Removing And Installing: Removing

-- Remove the noise insulation. Refer to NOISE INSULATION .

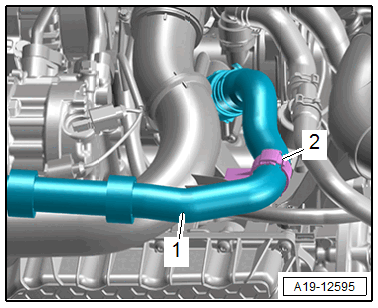

-- Open the clip -2- and free up the coolant hose -1- and push to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip upward from the air duct pipe.

Vehicle with Transmission Coolant Valve -N488- :

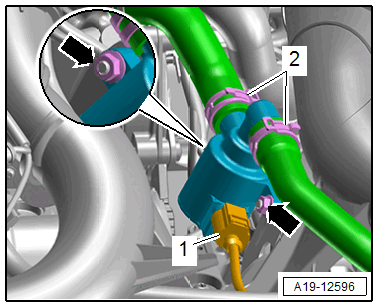

Fig 1: Transmission Coolant Valve -N488- Component Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

-- Remove the nuts -arrows- and move the coolant valve to the side.

Continuation for All Vehicles:

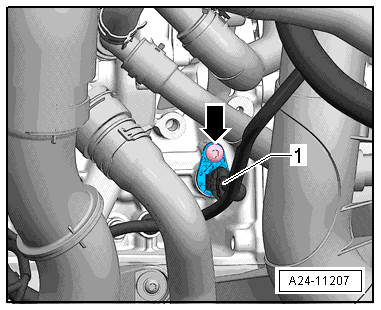

Fig 2: Identifying Engine Speed Sensor And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

-- Remove the bolt -arrow- and remove the Engine Speed Sensor -G28-.
