Knock Sensor 1 -G61-, Removing And Installing: Removing

-- Remove the Engine Temperature Control Actuator -N493-. Refer to ENGINE TEMPERATURE CONTROL ACTUATOR -N493-, REMOVING AND INSTALLING .

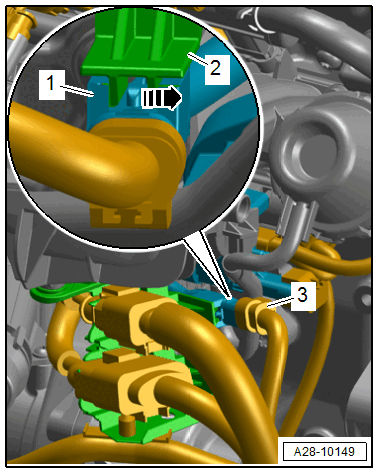

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wire -1- for the Knock Sensor 1 -G61- to do so release the catch in direction of -arrow- from the bracket -2-.

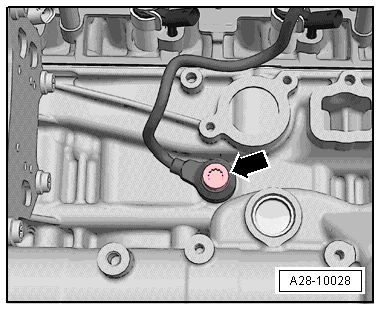

-- Remove the bolt -arrow- and then the Knock Sensor 1 -G61-.

Fig 1: Locating Knock Sensor Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
