Component Location Overview - Transmission Control

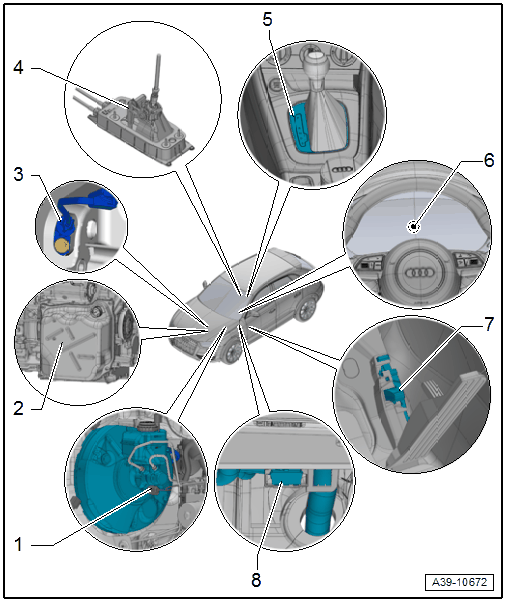

Fig 1: Transmission Control Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Brake Lamp Switch -F- /Brake Pedal Switch -F63-
   • On the brake master cylinder
   • Overview. Refer to
2. DSG Transmission Mechatronic -J743-
   • Bolted to the front of the transmission housing.
   • Overview. Refer to OVERVIEW - MECHATRONIC .
3. Transmission Input Speed Sensor -G182- /Clutch Oil Temperature Sensor -G509-
   • Not for this model
4. Selector Mechanism
   • With the following integrated components:
     • Selector Lever -E313-
     • Selector Lever Sensor System Control Module -J587-
     • Selector Lever Park Position Lock Switch -F319-
     • Shift Lock Solenoid -N110-
   • The components cannot be replaced separately if faulty.
   • Check using the Guided Fault Finding  in the Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
5. Selector Lever Transmission Range Position Display Unit -Y26-
   • Component Location Overview. Refer to OVERVIEW - CENTER CONSOLE LAMPS
   • Different versions
6. Transmission Range Display -Y6-
   • Integrated in the instrument cluster
   • Cannot be replaced separately
   • Instrument cluster overview. Refer to OVERVIEW - INSTRUMENT CLUSTER .
7. Kick Down Switch
   • A programmed value for the Accelerator Pedal Position Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- (integrated in accelerator pedal module) is saved in the engine control module as a kick-down signal.
   • Signal transmitted from engine control module to transmission control module via the CAN bus.
   • Overview. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
8. Diagnostic Connection
   • For the Vehicle Diagnostic Tester
   • In driver footwell
   • Check all of the listed components using the Vehicle Diagnostic Tester in Guided Fault Finding  .
