Control Module/Digital Sound System Amplifier, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Open the left storage compartment in the luggage compartment.

The bracket with the Digital Sound System Control Module -J525- must be removed first.

-- Release and disconnect the connectors -1- from the Digital Sound System Control Module -J525- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :VAS6223/9  -1- onto the MOST Bus connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

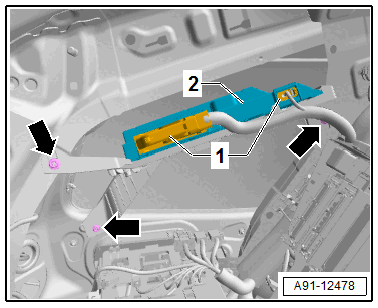

-- Remove the nuts -arrows- on the bracket and remove the Digital Sound System Control Module -J525- -2- with the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

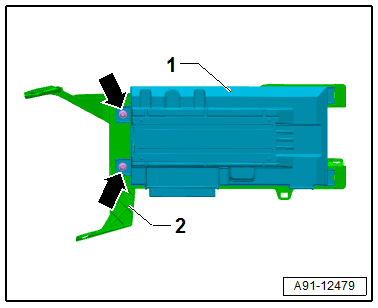

-- Remove the bolts -arrows- and remove the Digital Sound System Control Module -J525- -1- from the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
