Side Adjustment, Checking

• Checking the side adjustment to the outer edge of the convertible top. Refer to SIDE ADJUSTMENT, CHECKING .
• Checking the side adjustment to the door window. Refer to SIDE ADJUSTMENT, CHECKING .
• Checking the side adjustment to the side window. Refer to SIDE ADJUSTMENT, CHECKING .

If the door window causes wind noise, the side adjustment must be checked.

Special Tools And Workshop Equipment Required

• Digital Caliper:VAS6335

Checking the Side Adjustment to the Outer Edge of the Convertible Top:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

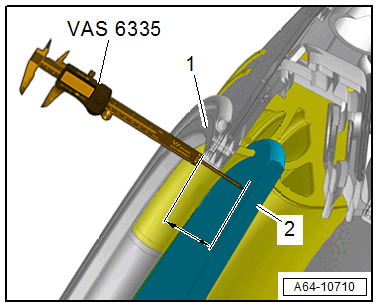

-- Measure the side window gap dimension -2- to the convertible top -1- using the :VAS6335  .

• Gap dimension -a-. Refer to ADJUSTMENT DIMENSIONS .

-- Adjust the side window if the side adjustment is not OK. Refer to SIDE ADJUSTMENT .

Checking the Side Adjustment to the Door Window:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

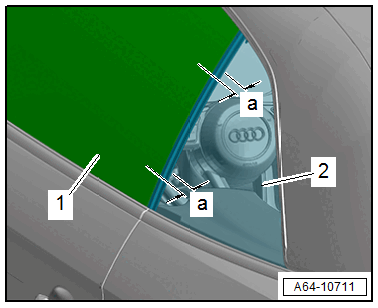

-- The parallel alignment of the door window -1- to the side window -2- must be the same at the top and bottom.

• Parallel alignment -a-. Refer to ADJUSTMENT DIMENSIONS .

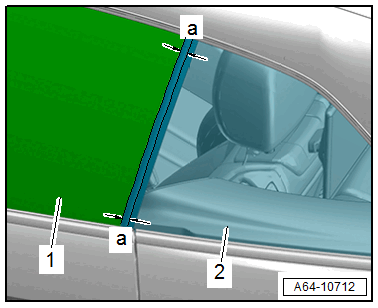

-- Measure the door window gap dimension -1- to the side window -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Gap dimension -a-. Refer to ADJUSTMENT DIMENSIONS .

-- Adjust the side window if the side adjustment is not OK. Refer to SIDE ADJUSTMENT .

Checking the Side Adjustment to the Side Panel:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

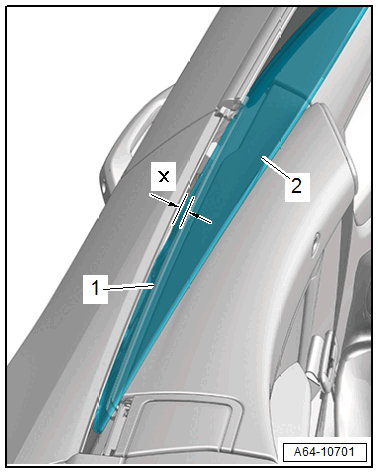

-- Measure the gap dimension -x- of the side window -1- to the side panel -2-.

• Gap dimension -a-. Refer to ADJUSTMENT DIMENSIONS .
• Gap dimension -f-. Refer to ADJUSTMENT DIMENSIONS .

-- Adjust the side window if the side adjustment is not OK. Refer to SIDE ADJUSTMENT .
