Component Location Overview - Sensors And Control Modules In Front Section Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

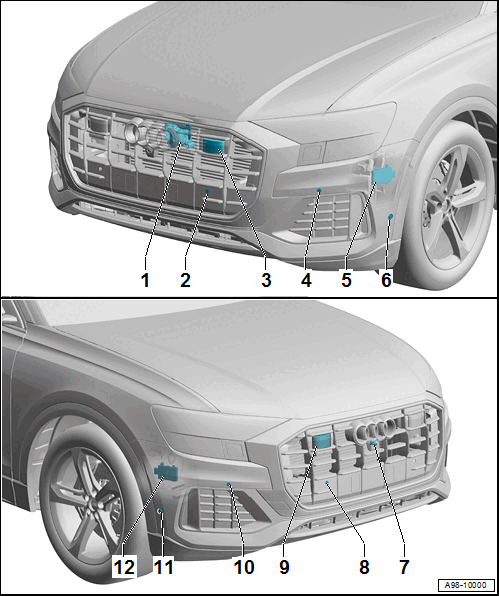

1. Night Vision System Camera -R212-
   • Night Vision System. Refer to NIGHT VISION SYSTEM .
   • Overview. Refer to OVERVIEW - NIGHT VISION SYSTEM CAMERA .
   • Removing and Installing. Refer to Night Vision System Camera -R212-, REMOVING AND INSTALLING .
   • Calibrating. Refer to NIGHT VISION SYSTEM, CALIBRATING .
2. Left Front Center Parking Aid Sensor -G254-
   • Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
   • Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
3. Control Module for Adaptive Cruise Control -J428-
   • Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
   • Overview. Refer to OVERVIEW - CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL .
   • Removing and Installing. Refer to Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING .
   • Adjusting. Refer to RADAR SENSOR (Control Module for Adaptive Cruise Control -J428-), ADJUSTING .
4. Left Front Parking Aid Sensor -G255-
   • Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
   • Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
5. Control Module for Left Front Object Detection Radar Sensor -J1088-
   • Front Corner Radar. Refer to FRONT CORNER RADAR .
   • Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
   • Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
6. Left Front Parallel Parking Assistance Sensor -G568-
   • Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
   • Removing and Installing. Refer to LEFT/RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR -G568- / -G569-, REMOVING AND INSTALLING .
7. Front Peripheral Camera -R243-
   • Peripheral Camera. Refer to PERIPHERAL CAMERA .
   • Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
8. Right Front Center Parking Aid Sensor -G253-
   • Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
   • Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
9. Laser Distance Regulation Control Module -J1122-
   • Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
   • Overview. Refer to OVERVIEW - LASER DISTANCE REGULATION CONTROL MODULE .
   • Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
   • Adjusting. Refer to LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING .
10. Right Front Parking Aid Sensor -G252-
    • Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
    • Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
11. Right Front Parallel Parking Assistance Sensor -G569-
    • Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
    • Removing and Installing. Refer to LEFT/RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR -G568- / -G569-, REMOVING AND INSTALLING .
12. Control Module for Right Front Object Detection Radar Sensor -J1089-
    • Front Corner Radar. Refer to FRONT CORNER RADAR .
    • Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
    • Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
