Camshaft Position Sensor, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

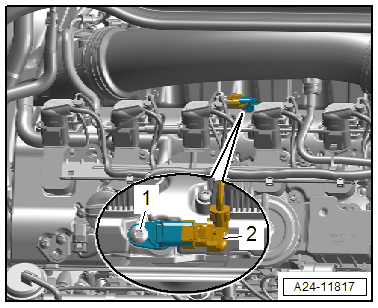

Camshaft Position Sensor -G40- :

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -2- and then remove the Camshaft Position Sensor -G40-.

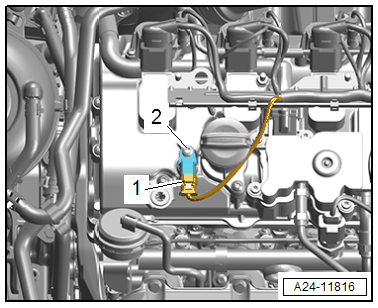

Camshaft Position Sensor 3 -G300- :

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolt -1- and then remove the Camshaft Position Sensor 3 -G300-.
