Control Module/Digital Sound System Amplifier, Removing And Installing, Cabriolet: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the Relay and Fuse Panel 2 -SR2- and pivot to the side with the lines still attached. Refer to OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
-- Remove the Comfort System Central Control Module -J393- with the bracket and pivot to the side with the lines still attached. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .

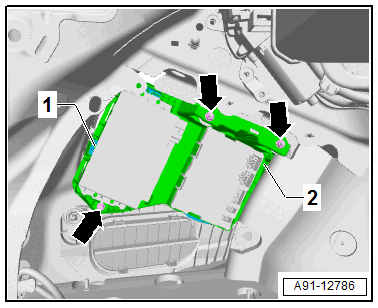

The bracket -2- with the Digital Sound System Control Module -J525- -1- must be removed first.
-- Remove the nuts -arrows- and pivot out the bracket -2- with the control modules.
-- Release and disconnect the connectors from the Digital Sound System Control Module -J525- -1-.
-- Insert the : VAS6223/9 -1- onto the MOST bus connector -2-.

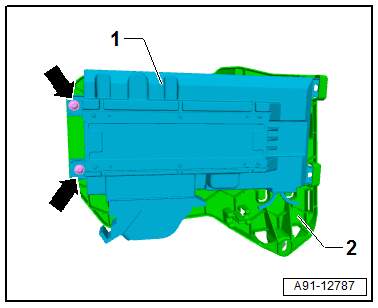

-- Remove the bolts -arrows- and remove the Digital Sound System Control Module -J525- -1- from the bracket -2-.
