Electronic Steering Column Lock Control Module -J764-, Removing And Installing: Installing

Installation is the reverse of removal, with special attention to the following:

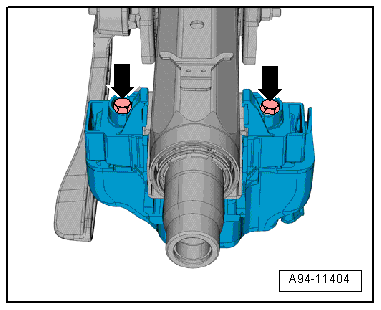

-- Secure the Electronic Steering Column Lock Control Module -J764- with new shear bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the shear bolts -arrows- evenly until the bolt heads shear off.

-- If the Electronic Steering Column Lock Control Module -J764- was replaced, then the Electronic Steering Column Lock Control Module -J764- must be adapted by selecting the function "Replace" using the Vehicle Diagnostic Tester in "Guided Functions".
