Engine Speed Sensor -G28-, Removing And Installing

-- Remove the rear noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Disconnect the connector -2-.

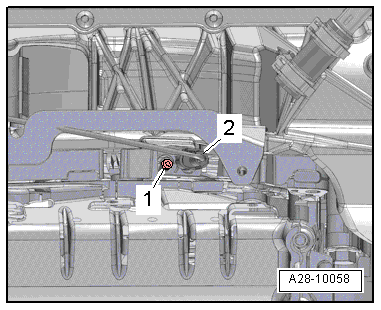

Fig 1: After-Run Coolant Pump -V51-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the Engine Speed Sensor -G28-.

Installing

Install in reverse order of removal and note the following:

• Replace the O-rings after removing them.

Tightening Specifications

• Refer to OVERVIEW - IGNITION SYSTEM
• Refer to OVERVIEW - NOISE INSULATION .
