ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING: Notes

WARNING: This page is about a different car, the 2019 Audi A5 Sportback and 2018 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Component location. Refer to COMPONENT LOCATION OVERVIEW - ABS/ESP .

Special tools and workshop equipment required

Vehicle Diagnostic Tester
Brake Pedal Actuator :VAG1869/2 .

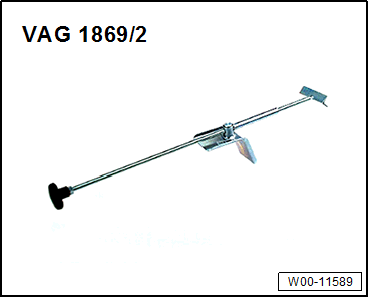

Fig 1: Identifying Brake Pedal Actuator
Courtesy of AUDI OF AMERICA, LLC
Collection bottle from the Bleeding Equipment :VAS6860 or Brake Charger/Bleeder Unit :VAS5234

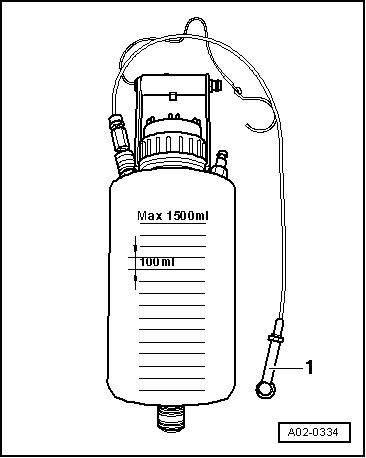

Fig 2: Brake Charger/Bleeder Unit VAS5234
Courtesy of AUDI OF AMERICA, LLC
Plug from the Repair Kit :1H0 698 311 A M10 -item 2- and M12 -item 3-

Fig 3: Identifying Sealing Plug Repair Set, Part No. 1 H0 698 311 A
Courtesy of AUDI OF AMERICA, LLC
Plug from the Assembly Part Set :5Q0 698 311 M10 -item 1- and M12 -item 2-

Fig 4: Plug 5 Q 0 698 311
Courtesy of AUDI OF AMERICA, LLC
Safety Gloves
