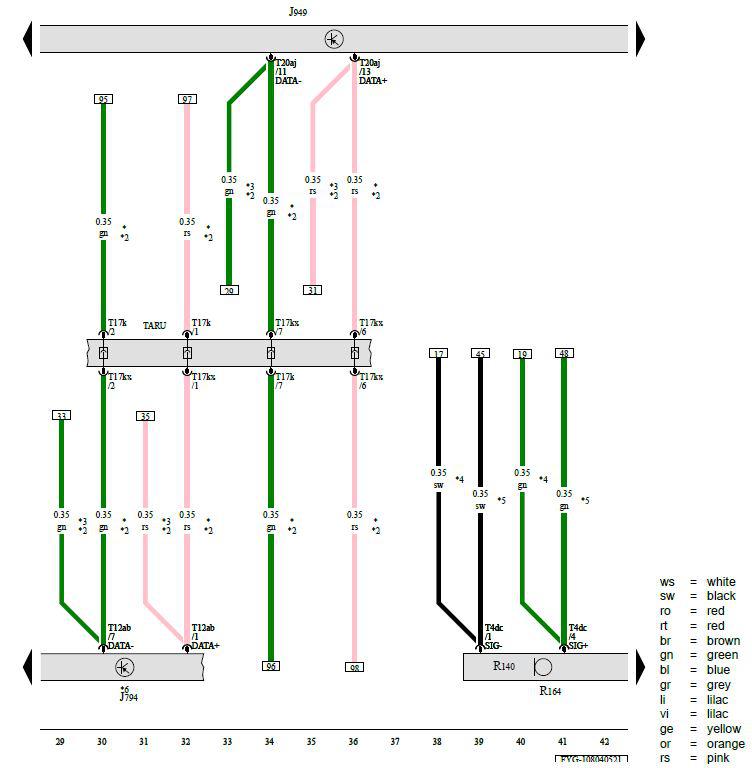

Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Left Front Microphone, Microphone Unit in Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794 -  Information Electronics Control Module 1

J949 -  Control Module for Emergency Call Module and Communication Unit

R140 -  Left Front Microphone

R164 -  Microphone Unit in Front Roof Module

T4dc -  4-Pin Connector, Gray

T12ab -  12-Pin Connector, Green

T17k -  17-Pin Connector, Black

T17kx -  17-Pin Connector, Black

T20aj -  20-Pin Connector, Naturally Cloudy

TARU -  Coupling Point on Right A-Pillar, Bottom

* -  For Vehicles with an Amplifier

*2 -  Audio Bus Data Bus Wire

*3 -  For Vehicles Without an Amplifier

*4 -  For LHD Vehicles

*5 -  For RHD Vehicles

*6 -  Refer to Applicable MMI (Information Electronics) Wiring Diagram
