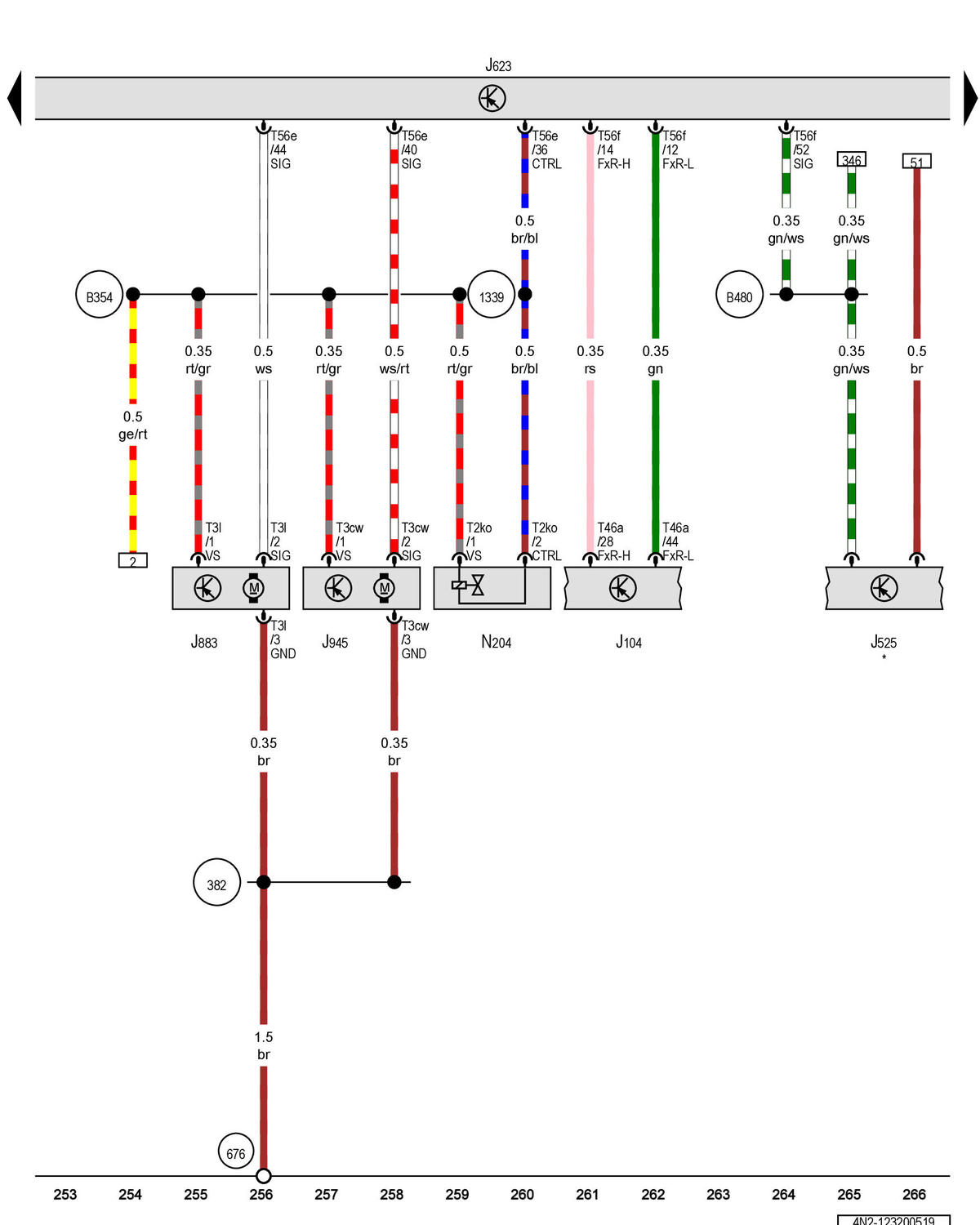

Abs Control Module, Digital Sound System Control Module, Engine/Motor Control Module, Exhaust Door Control Unit, Exhaust Door Control Unit 2, Tank Ventilation Valve: Notes

GWW4N2-123200519Courtesy of AUDI OF AMERICA, LLC
