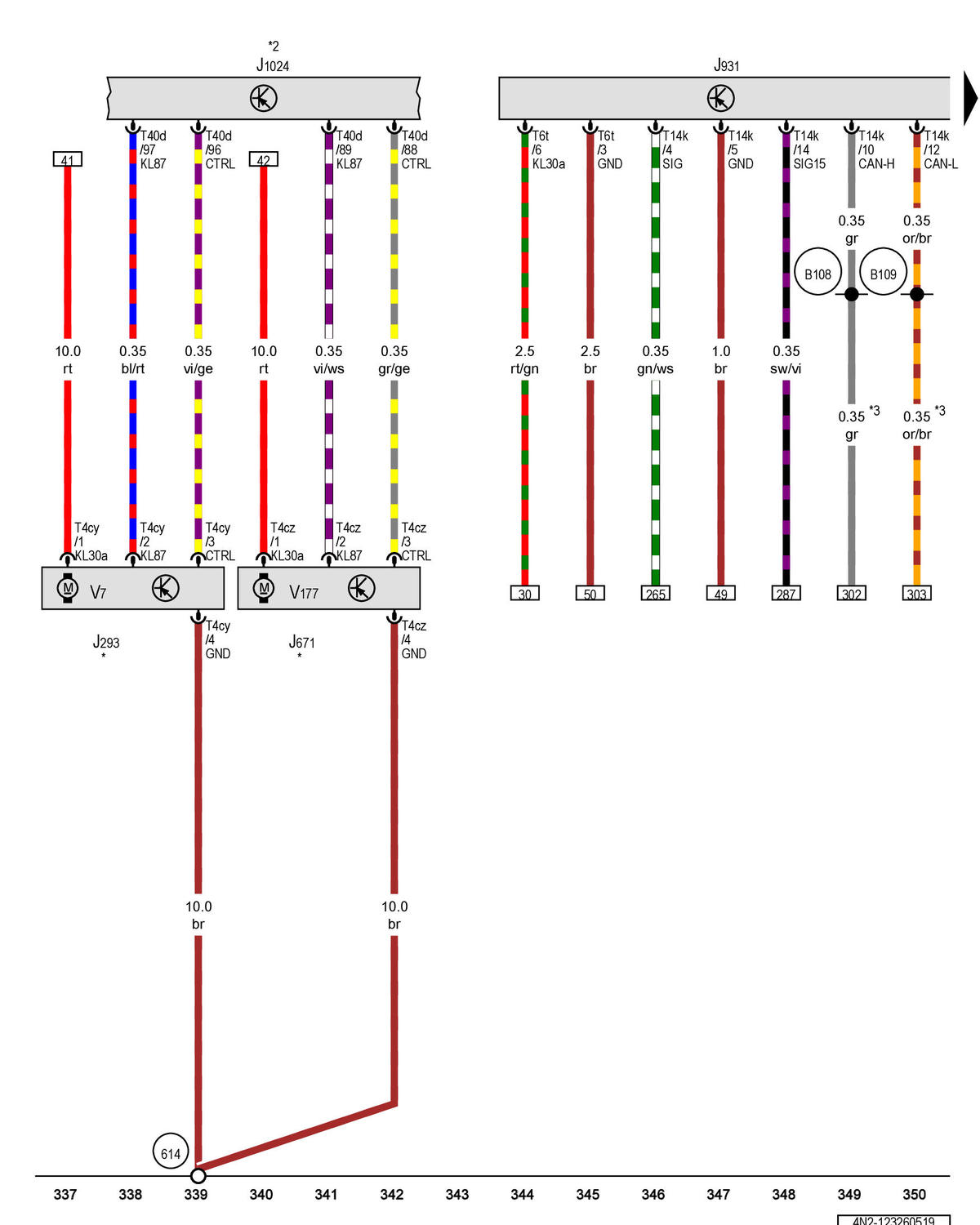

Radiator Fan Control Module, Radiator Fan Control Module 2, Assembly Mount Control Module, Thermal Management Control Module: Notes

GWW4N2-123260519Courtesy of AUDI OF AMERICA, LLC
