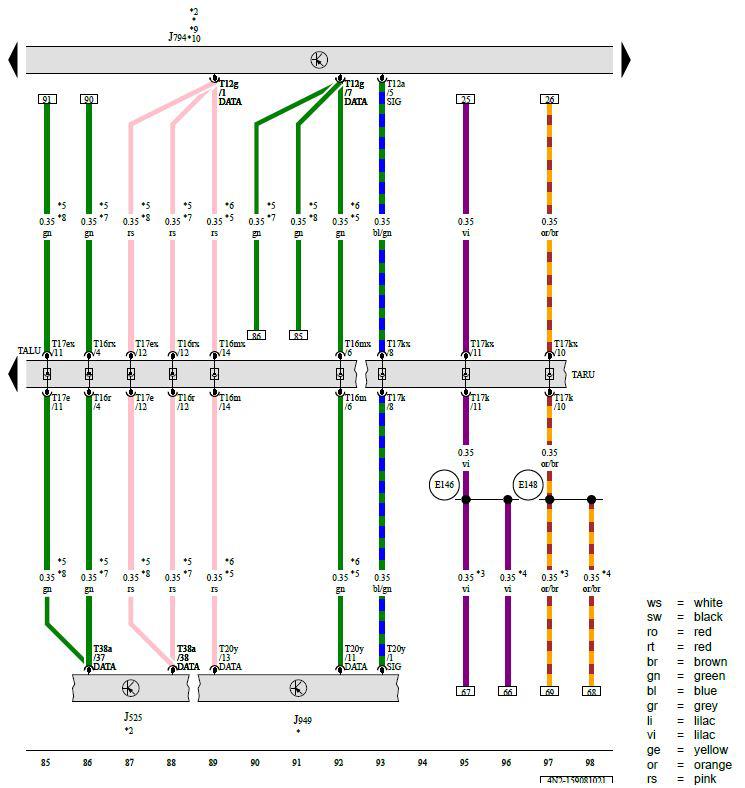

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit
J525 - Digital Sound System Control Module
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
T12a - 12-Pin Connector, Blue
T12g - 12-Pin Connector, Green
T16m - 16-Pin Connector, Black
T16mx - 16-Pin Connector, Black
T16r - 16-Pin Connector, Black
T16rx - 16-Pin Connector, Black
T17e - 17-Pin Connector, Red
T17ex - 17-Pin Connector, Red
T17k - 17-Pin Connector, Gray
T17kx - 17-Pin Connector, Gray
T20y - 20-Pin Connector, Naturally Cloudy
T38a - 38-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
TARU - Coupling Point on Right A-Pillar, Bottom
E146 - Connection 2 (CAN Bus Information Electronics Control Module 1, High)
E148 - Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
* - Refer to Applicable Communication Wiring Diagram
*2 - Refer to Applicable Sound System Wiring Diagram
*3 - For Vehicles with Short Rear Center Console
*4 - For Vehicles with Long Rear Center Console
*5 - Audio Bus Data Bus Wire
*6 - For Vehicles with Standard Sound System
*7 - For RHD Vehicles
*8 - For LHD Vehicles
*9 - Refer to Applicable Peripheral Camera Wiring Diagram
*10 - Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
