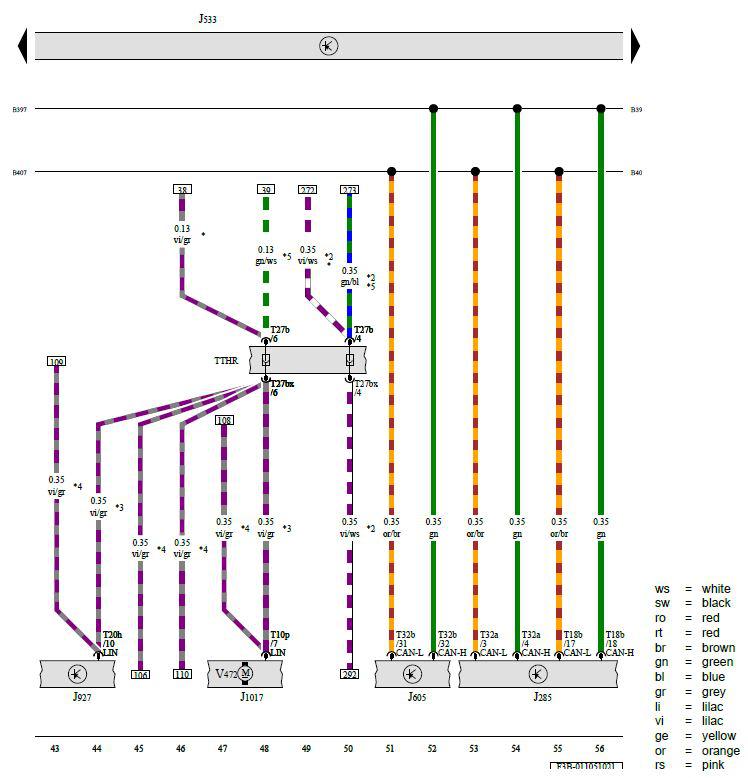

Instrument Cluster Control Module, Data Bus on Board Diagnostic Interface, Rear Lid Control Module, Passenger Side Rear Door Control Module, Passenger Side Rear Window Regulator Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J533 -  Data Bus on Board Diagnostic Interface

J605 -  Rear Lid Control Module

J927 -  Passenger Side Rear Door Control Module

J1017 -  Passenger Side Rear Window Regulator Motor Control Module

T10p -  10-Pin Connector, Black

T18b -  18-Pin Connector, Black

T20h -  20-Pin Connector, White

T27b -  27-Pin Connector, Black

T27bx -  27-Pin Connector, Black

T32a -  32-Pin Connector, Gray

T32b -  32-Pin Connector, Naturally Cloudy

TTHR -  Right Rear Door Coupling Point

V472 -  Passenger Side Rear Window Regulator Motor

B397 -  Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B407 -  Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

* -  Through October 2018

*2 -  For Vehicles with Ambient Lighting, Version 2

*3 -  For LHD Vehicles

*4 -  For RHD Vehicles

*5 -  From October 2018
