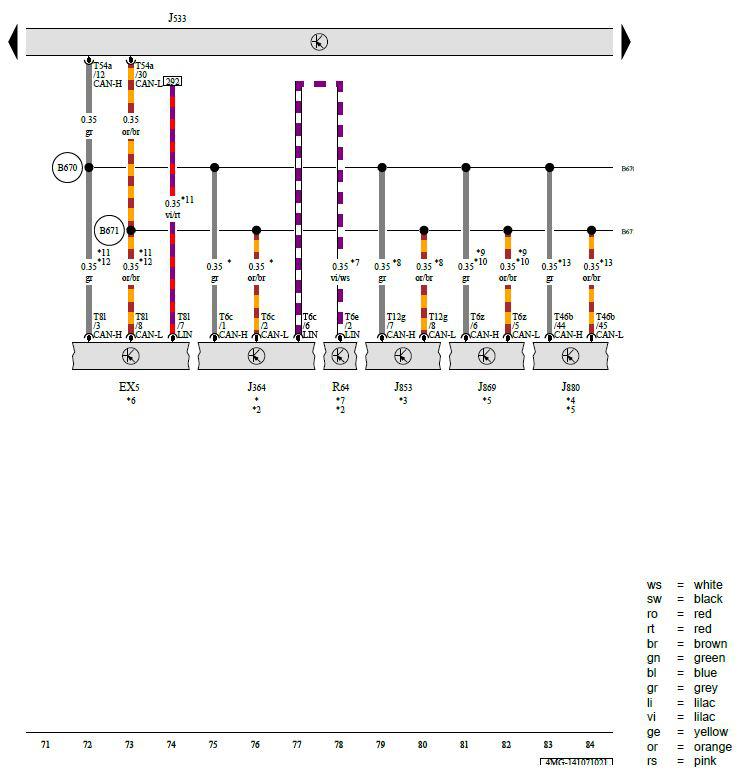

Interior Rearview Mirror, Auxiliary Heater Control Module, Data Bus on Board Diagnostic Interface, Night Vision System Control Module, Structure-Borne Sound Control Module, Reducing Agent Metering System Control Module, Parking Heater Radio Receiver
EX5 - Interior Rearview Mirror
J364 - Auxiliary Heater Control Module
J533 - Data Bus on Board Diagnostic Interface
J853 - Night Vision System Control Module
J869 - Structure-Borne Sound Control Module
J880 - Reducing Agent Metering System Control Module
R64 - Parking Heater Radio Receiver
T6c - 6-Pin Connector, Black
T6e - 6-Pin Connector, Blue
T6z - 6-Pin Connector, Black
T8l - 8-Pin Connector, Black
T12g - 12-Pin Connector, Black
T46b - 46-Pin Connector, Black
T54a - 54-Pin Connector, Black
B670 - CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671 - CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
* - For Vehicles with a Parking Heater
*2 - Refer to Applicable Wiring Diagram
*3 - Refer to Applicable Night Vision System Wiring Diagram
*4 - Refer to Applicable Reducing Agent Metering System Wiring Diagram
*5 - Refer to Applicable Engine Wiring Diagram
*6 - Refer to the Applicable Interior Rearview Mirror Wiring Diagram
*7 - For Vehicles with Parking Heater Radio Receiver
*8 - For Vehicles with Night Vision System
*9 - For Vehicles with a 8-Cylinder Engine
*10 - Depending on Equipment
*11 - For Vehicles with Automatic Dimming Interior Rearview Mirror
*12 - For Vehicles with High Beam Assist
*13 - For Vehicles with Reducing Agent Metering System
