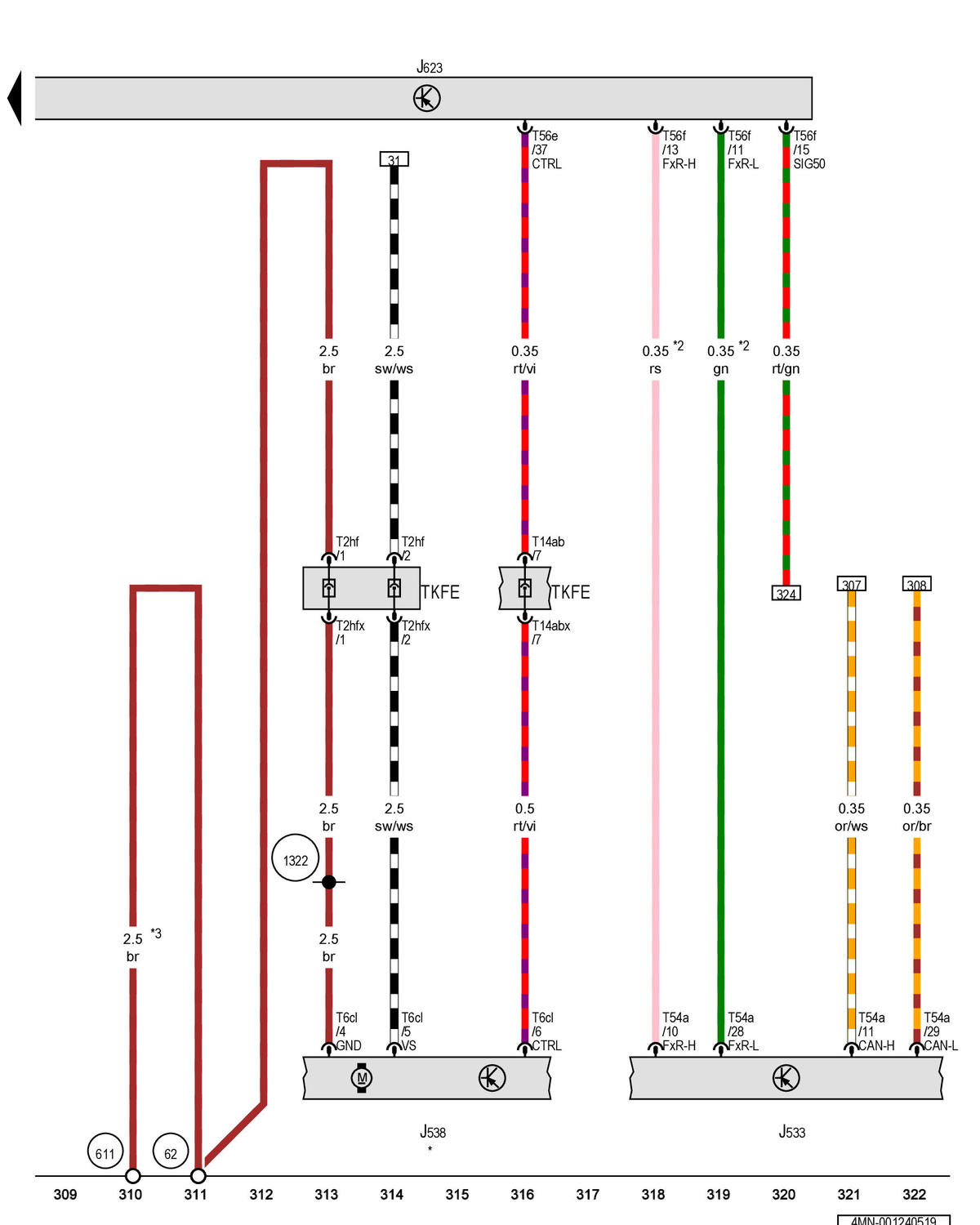

Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW4MN-001240519Courtesy of AUDI OF AMERICA, LLC
