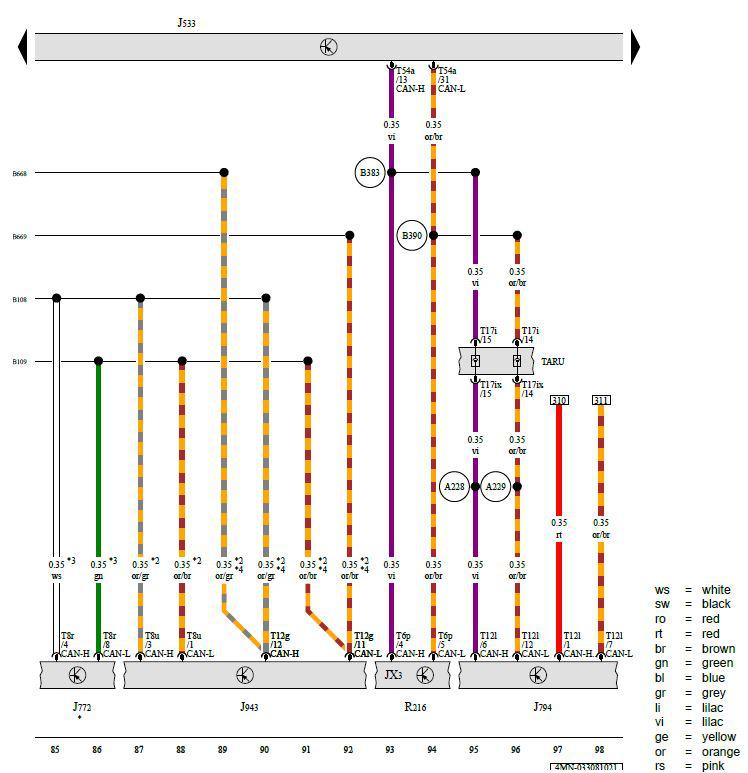

Data Bus on Board Diagnostic Interface, Rearview Camera System Control Module, Information Electronics Control Module 1, Engine Sound Generator Control Module, Roof Antenna
JX3 - Roof Antenna Control Module
J533 - Data Bus on Board Diagnostic Interface
J772 - Rearview Camera System Control Module
J794 - Information Electronics Control Module 1
J943 - Engine Sound Generator Control Module
R216 - Roof Antenna
T6p - 6-Pin Connector, Black
T8r - 8-Pin Connector, Black
T8u - 8-Pin Connector, Black
T12g - 12-Pin Connector, Black
T12l - 12-Pin Connector, Gray
T17i - 17-Pin Connector, Blue
T17ix - 17-Pin Connector, Blue
T54a - 54-Pin Connector, Black
TARU - Coupling Point on Right A-Pillar, Bottom
A228 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Instrument Panel Wiring Harness)
A229 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Instrument Panel Wiring Harness)
B108 - CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109 - CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B383 - Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390 - Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
B668 - CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669 - CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2 - Depending on Equipment
*3 - For Vehicles with Rearview Camera System
*4 - For Vehicles with Hybrid Drive
