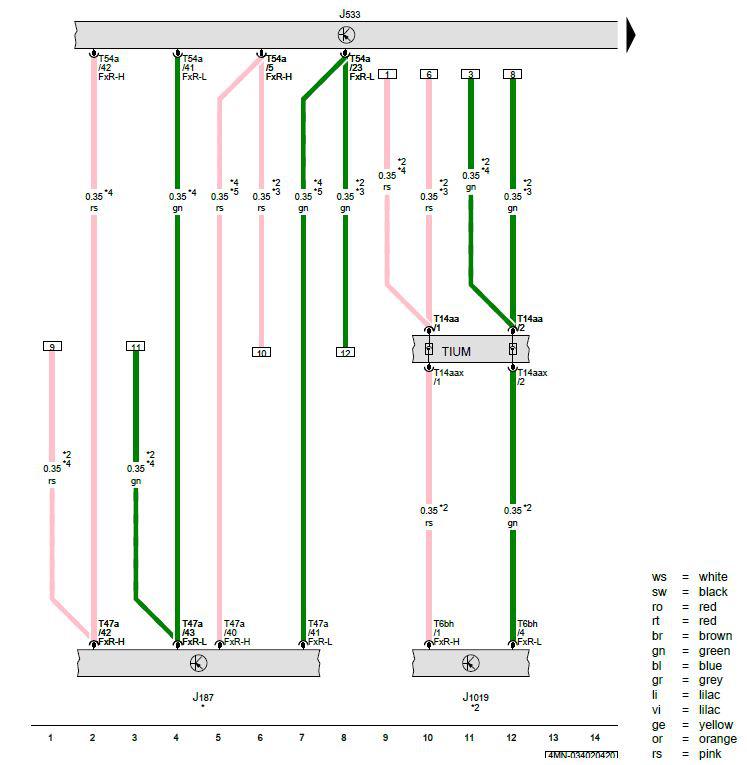

Differential Lock Control Module, Data Bus on Board Diagnostic Interface, Rear Axle Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J187 -  Differential Lock Control Module

J533 -  Data Bus on Board Diagnostic Interface

J1019 -  Rear Axle Steering Control Module

T6bh -  6-Pin Connector, Black

T14aa -  14-Pin Connector, Black

T14aax -  14-Pin Connector, Black

T47a -  47-Pin Connector, Black

T54a -  54-Pin Connector, Black

TIUM -  Coupling Point in Interior, Bottom Center

* -  Refer to Applicable AWD Wiring Diagram

*2 -  For Vehicles with Rear Axle Steering

*3 -  For Vehicles Without All Wheel Drive

*4 -  For AWD Vehicles

*5 -  For Vehicles Without Rear Axle Steering
