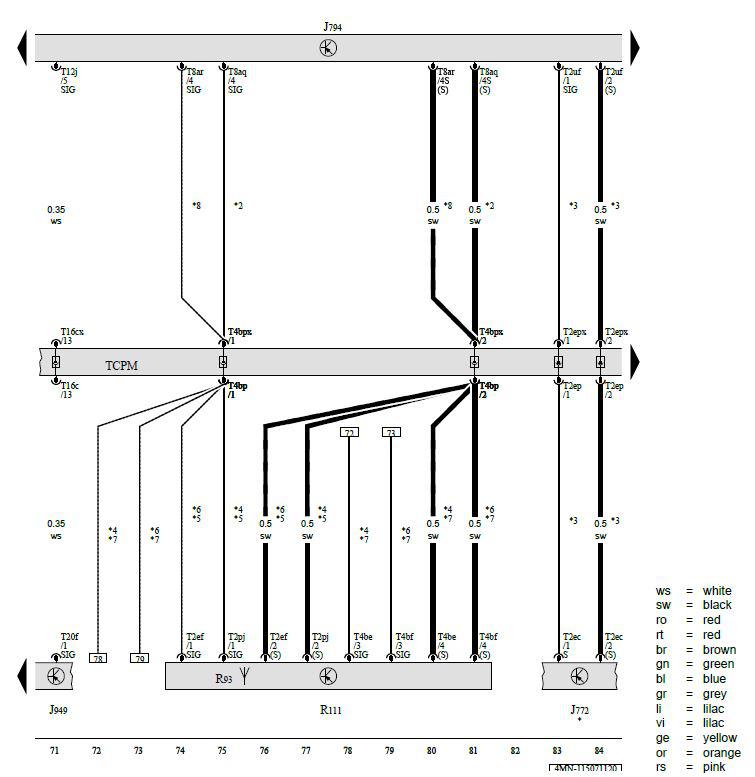

Rearview Camera System Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Antenna Amplifier 2
J772 - Rearview Camera System Control Module
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
R93 - Radio Antenna 2
R111 - Antenna Amplifier 2
T2ec - 2-Pin Connector, Blue
T2ef - 2-Pin Connector, Blue
T2ep - 2-Pin Connector, Purple
T2epx - 2-Pin Connector, Purple
T2pj - 2-Pin Connector, Naturally Cloudy
T2uf - 2-Pin Connector, Green
T4be - 4-Pin Connector, Purple
T4bf - 4-Pin Connector, Blue
T4bp - 4-Pin Connector, White
T4bpx - 4-Pin Connector, White
T8aq - 8-Pin Connector, Blue
T8ar - 8-Pin Connector, Black
T12j - 12-Pin Connector, Blue
T16c - 16-Pin Connector, Black
T16cx - 16-Pin Connector, Black
T20f - 20-Pin Connector, Naturally Cloudy
TCPM - Coupling Point on Instrument Panel, Center
* - Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2 - For Vehicles Without US Equipment
*3 - For Vehicles with Rearview Camera System
*4 - For Vehicles Without Japan Equipment
*5 - For Vehicles Without TV Reception
*6 - For Vehicles with Japan Equipment
*7 - For Vehicles with TV Tuner
*8 - For Vehicles with US Equipment
