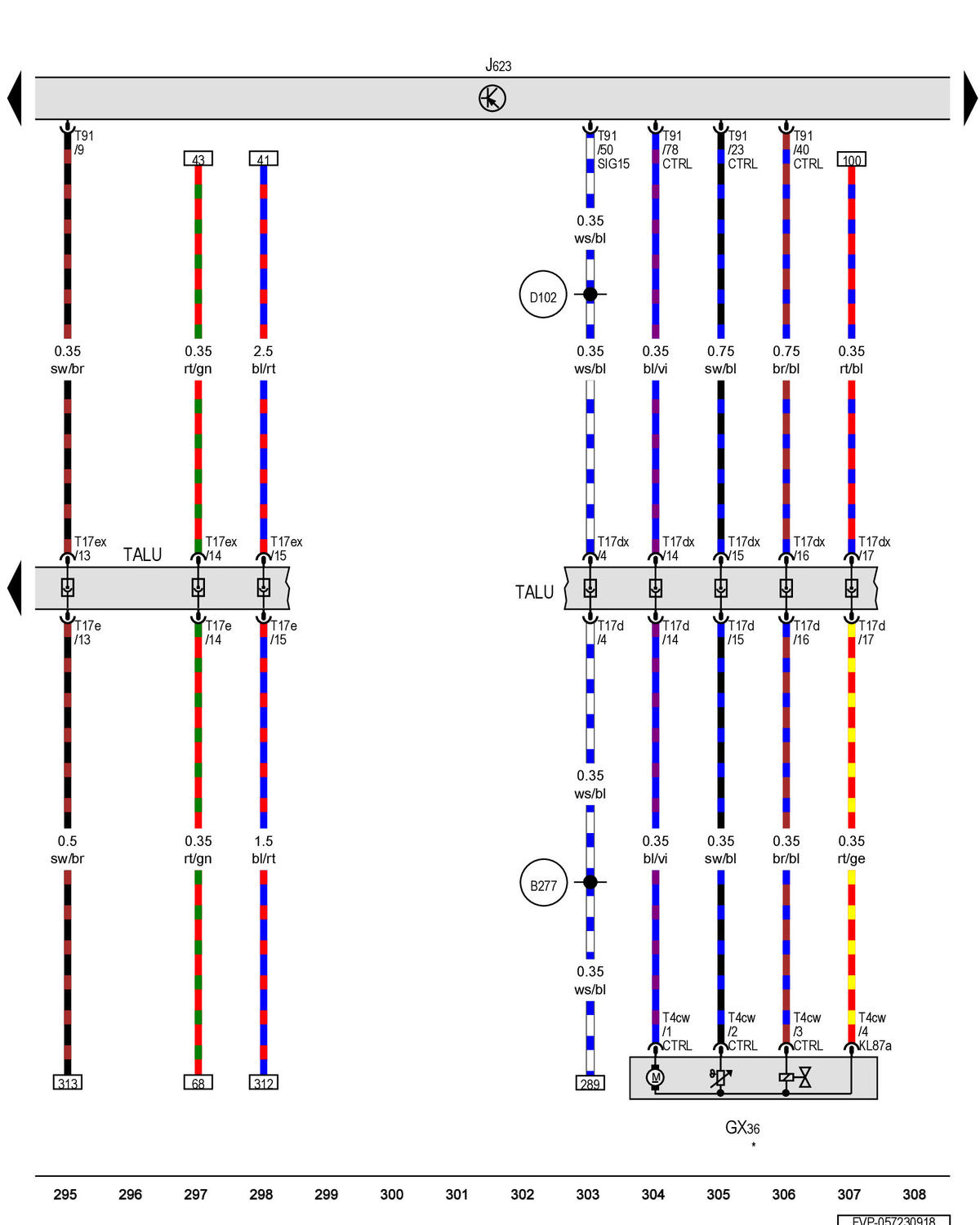

Fuel Tank Leak Detection Module, Engine/Motor Control Module: Notes

GWWFVP-057230918

Courtesy of AUDI OF AMERICA, LLC
