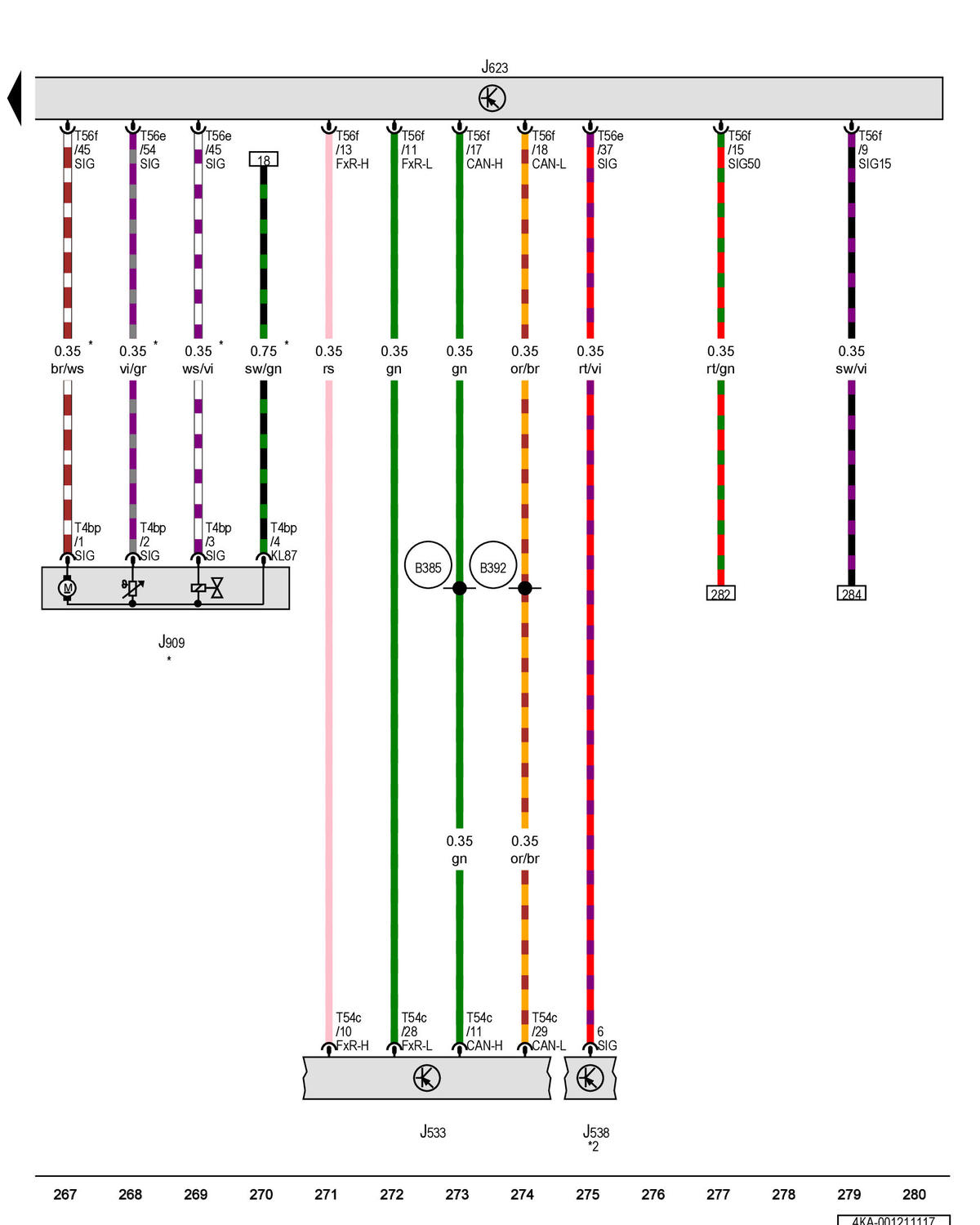

Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW4KA-001211117Courtesy of AUDI OF AMERICA, LLC
