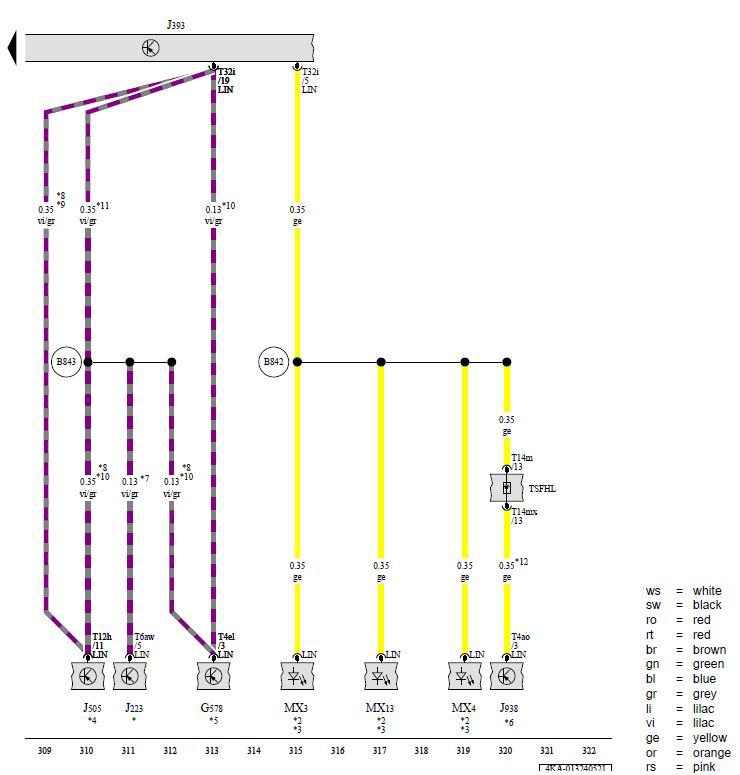

Anti-Theft Alarm System Sensor, Rear Spoiler Control Module, Comfort System Central Control Module, Windshield Defogger Control Module, Power Rear Lid Opening Control Module, Center Tail Lamp
G578 - Anti-Theft Alarm System Sensor
J223 - Rear Spoiler Control Module
J393 - Comfort System Central Control Module
J505 - Windshield Defogger Control Module
J938 - Power Rear Lid Opening Control Module
MX3 - Left Tail Lamp
MX4 - Right Tail Lamp
MX13 - Center Tail Lamp
T4ao - 4-Pin Connector, Black
T4el - 4-Pin Connector, Black
T6aw - 6-Pin Connector, Brown
T12h - 12-Pin Connector, Black
T14m - 14-Pin Connector, Black
T14mx - 14-Pin Connector, Black
T32i - 32-Pin Connector, Naturally Cloudy, Black
TSFHL - Coupling Point on Left Rear Bumper
B842 - LIN Bus Connection 8 (in Main Wiring Harness)
B843 - LIN Bus Connection 9 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Rear Spoiler Adjustment
*2 - For Vehicles with LED Tail Lamps
*3 - Refer to Applicable Wiring Diagram
*4 - Refer to Applicable Windshield Defogger Wiring Diagram
*5 - Refer to Applicable Convenience System Wiring Diagram
*6 - Refer to Applicable Power Rear Lid Wiring Diagram
*7 - For Vehicles with Power Rear Spoiler
*8 - For Vehicles with Windshield Defogger
*9 - For Vehicles Without Anti-Theft Alarm System
*10 - For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*11 - Depending on Equipment
*12 - Optional Equipment
