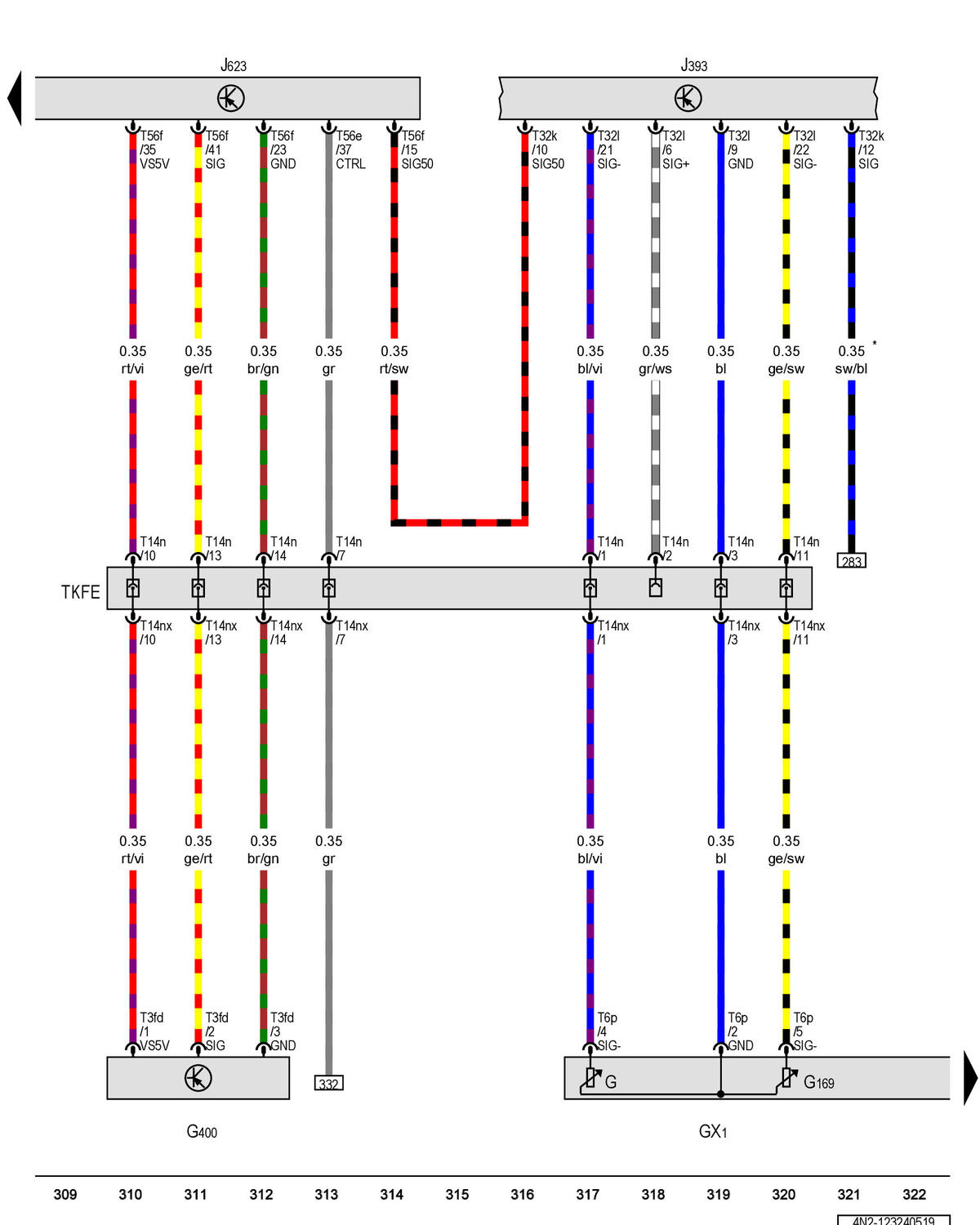

Fuel Delivery Unit, Fuel Tank Pressure Sensor, Comfort System Central Control Module, Engine/Motor Control Module: Notes

GWW4N2-123240519Courtesy of AUDI OF AMERICA, LLC
