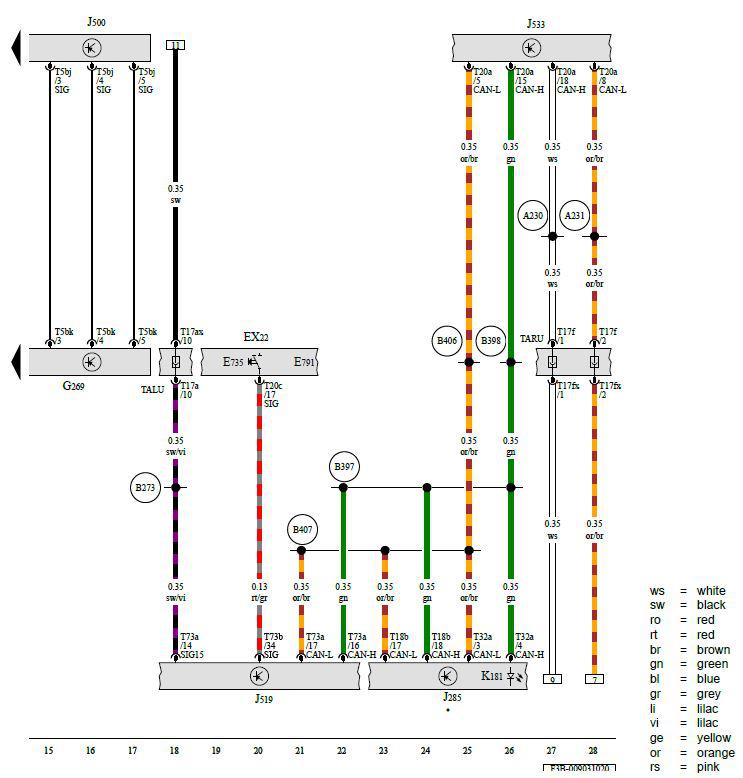

Switch Module in Instrument Panel, Center, Steering Torque Sensor, Instrument Cluster Control Module, Power Steering Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface
EX22 - Switch Module in Instrument Panel, Center
E735 - Driving Profile Selection Button
E791 - Control Unit 1 for Driving and Convenience Functions
G269 - Steering Torque Sensor
J285 - Instrument Cluster Control Module
J500 - Power Steering Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
K181 - Normal Operation Indicator Lamp in Differential Controller
T5bj - 5-Pin Connector, Black
T5bk - 5-Pin Connector, Black
T17a - 17-Pin Connector, Blue
T17ax - 17-Pin Connector, Blue
T17f - 17-Pin Connector, Black
T17fx - 17-Pin Connector, Black
T18b - 18-Pin Connector, Black
T20a - 20-Pin Connector, Black
T20c - 20-Pin Connector, Black
T32a - 32-Pin Connector, Gray
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
TARU - Coupling Point on Right A-Pillar, Bottom
A230 - Suspension/Instrument Cluster CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A231 - Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
B273 - Positive Connection (15) (in Main Wiring Harness)
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B406 - Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Instrument Cluster
