Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING: Removing

• Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .

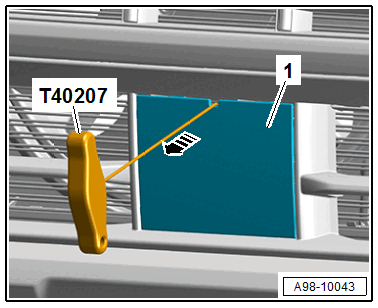

-- Using the : T40207  loosen the cover in direction of -arrow- and remove.

Courtesy of AUDI OF AMERICA, LLC

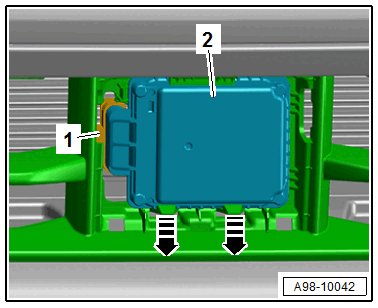

-- Release the catches -arrows- and remove the control module -2- for adaptive cruise control.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
