Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

• Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

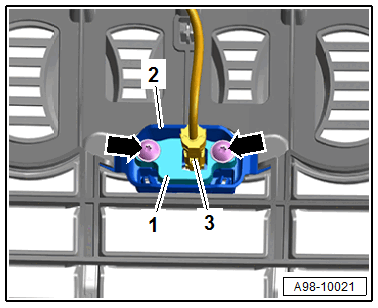

-- Disconnect and release the antenna wire -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the mounting point -1-.

-- Remove the Front Peripheral Camera -R243- -2-.
