Overview - Windshield

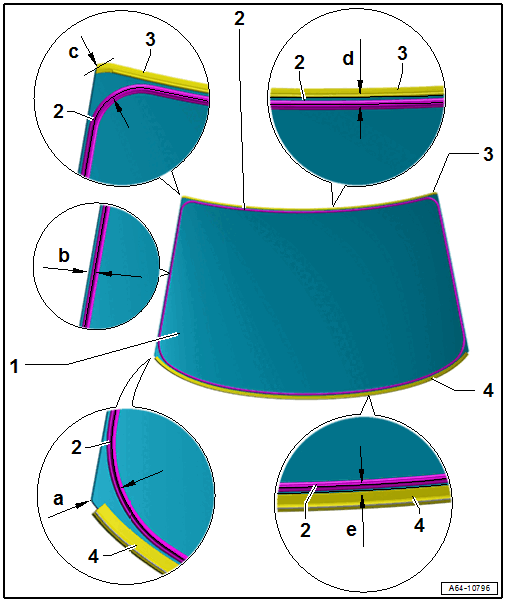

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Center the side distance to the A-pillars
- Distance from the windshield to the upper window frame. Refer to Cover Profile, Mounting on Undamaged Windshield: - Adjust the distance from the windshield -1- to the upper window frame. .
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
- Dimension -a- = 31.0 mm
- Dimension -b- = 7.0 mm
- Dimension -c- = 30.5 mm
- Dimension -d- = 8.5 mm
- Dimension -e- = 8.0 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Cover Profile
- Replace if reusing an undamaged windshield
- Cover Profile, Mounting on Undamaged Windshield. Refer to Cover Profile, Mounting on Undamaged Windshield: .
- Plenum Chamber Cover Frame
- Windshield component
- With a new windshield, remove the protective molding before installing the cowl panel trim. Refer to Fig 1.
Protective Molding, Removing
-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
