Infotainment System Display, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front passenger side instrument panel vent. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .

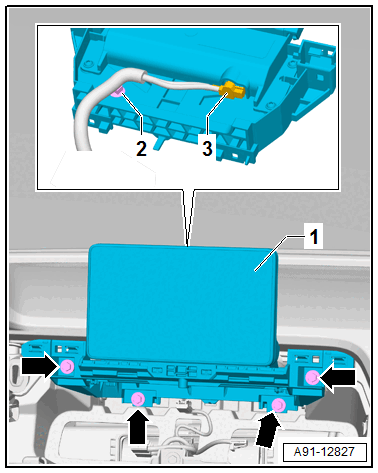

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the display -1- toward the rear out of the instrument panel until the connector is accessible.

-- Remove the wiring harness bracket -2- from the display -1-.

-- Release and disconnect the connector -3- on the display -1-.
