Component Location Overview - Navigation System, Only Japan

Courtesy of AUDI OF AMERICA, LLC

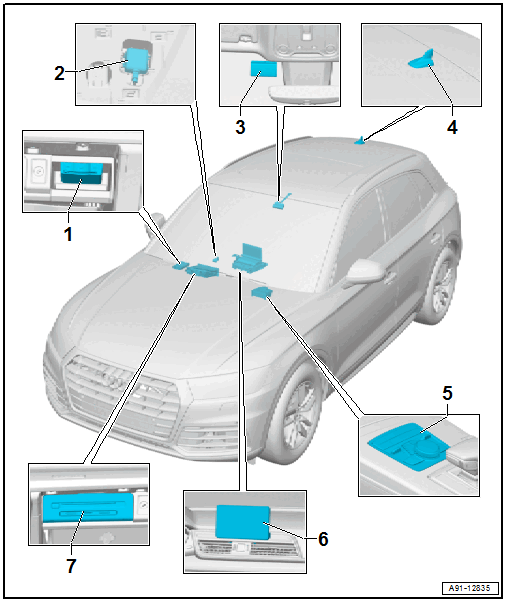

1. Chip Card Reader Control Module -J676-
   • In the glove compartment
   • Removing and installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
2. Close Range Communication Antenna -R269-
   • In front instrument panel at the center
   • Removing and installing. Refer to CLOSE RANGE COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
3. Traffic Data Antenna -R173-
   • on top center of front window
   • Removing and installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
4. GPS Antenna -R50-
   • In the Roof Antenna -R216-
   • Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
5. Multimedia System Control Head -E380-
   • In the center console
   • Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
6. Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
7. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
