Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

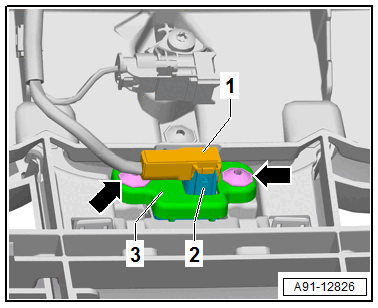

-- Release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the retaining plate -3- from the radiator grille.

-- Remove the Front Peripheral Camera -R243- -2- from the radiator grille.
