Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

Vehicles with Digital Sound System Control Module -J525-

-- Remove the Digital Sound System Control Module -J525- with the bracket. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .

Vehicles without Digital Sound System Control Module -J525-

-- Remove the service cover from the left luggage compartment side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .

Continuation for All Vehicles

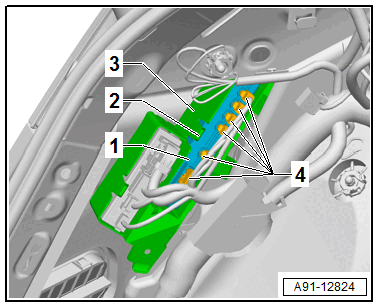

-- Release and disconnect the connectors -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tab -2- from the bracket -3-.

-- Remove the Peripheral Camera Control Module -J928- -1- from the bracket -2-.
