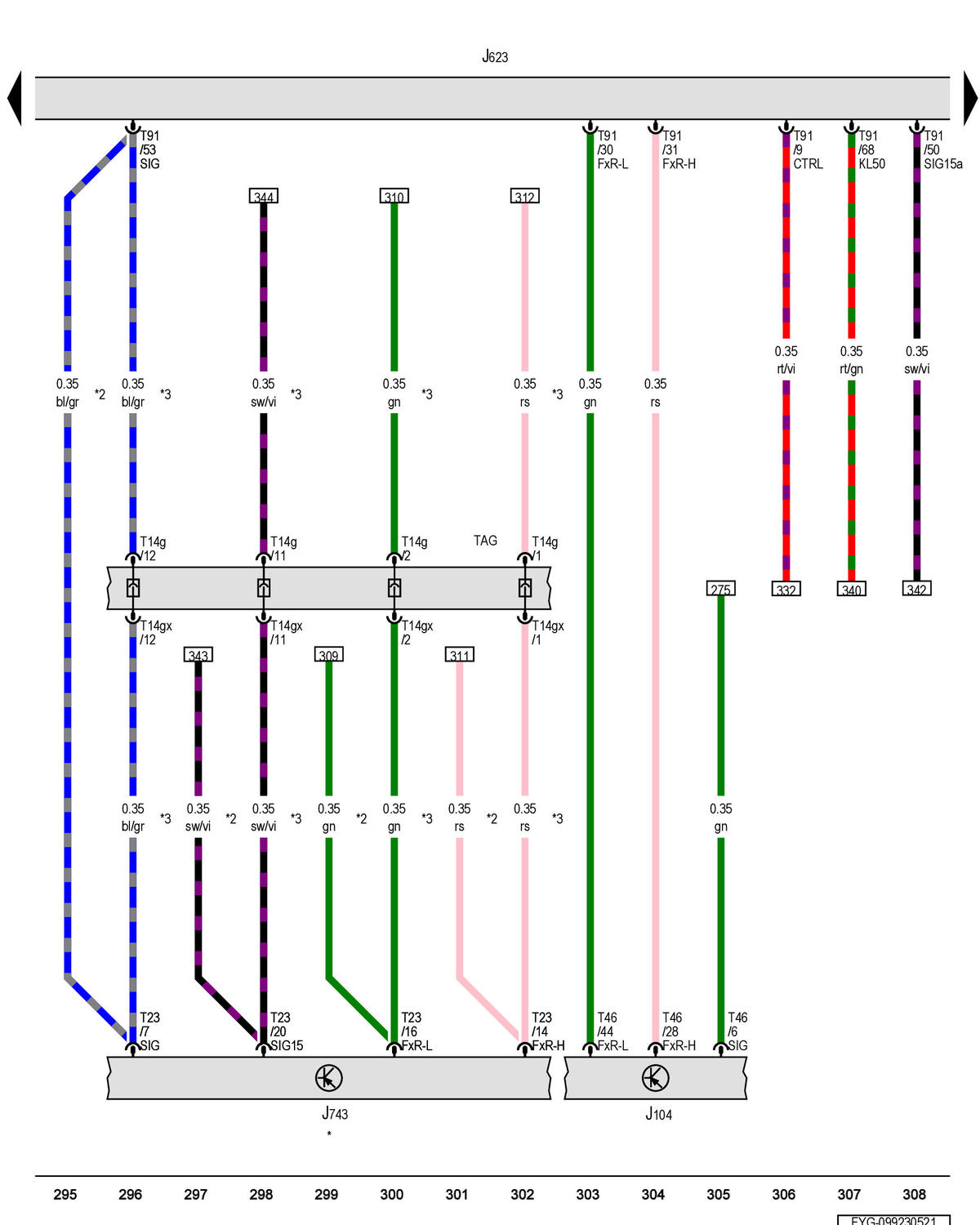

Abs Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J623 -  Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

J743 -  Dual-Clutch Transmission Mechatronic

T14g -  14-Pin Connector, Black

T14gx -  14-Pin Connector, Black

T23 -  23-Pin Connector, Black

T46 -  46-Pin Connector, Black

T91 -  91-Pin Connector, Black

TAG -  Automatic Transmission Coupling Point

* -  Refer to Applicable Wiring Diagram for Automatic Transmission

*2 -  For USA Only

*3 -  Not for USA
