Rear Window Spray Pattern, Checking
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
The spray pattern must meet the following specifications:
- Both points of impact are just above the wiper blades
- Even, precise spray jets

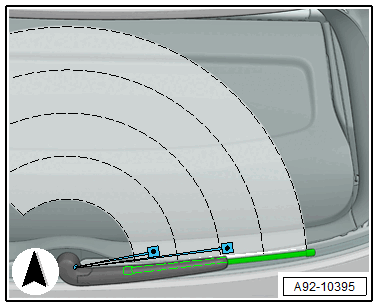

- Inner spray jet point of impact is approximately in the first quarter of the length of the wiper blade -image-.
- Outer spray jet point of impact is approximately in the middle of the length of the wiper blade or just above -image- (third quarter).
Procedure:
-- Activate the rear window washer system and assess the spray pattern.
-- If the spray pattern does not meet the specifications, adjust the spray nozzles. Refer to REAR WINDOW SPRAY NOZZLES, ADJUSTING .
