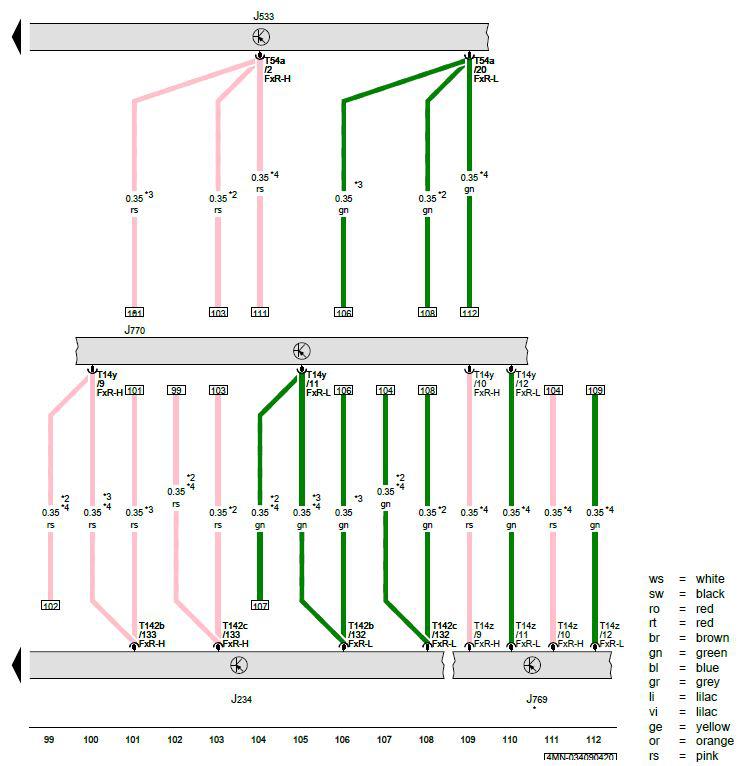

Airbag Control Module, Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J533 -  Data Bus on Board Diagnostic Interface

J769 -  Lane Change Assistance Control Module

J770 -  Lane Change Assistance Control Module 2

T14y -  14-Pin Connector, Black

T14z -  14-Pin Connector, Black

T54a -  54-Pin Connector, Black

T142b -  142-Pin Connector, Yellow

T142c -  142-Pin Connector, Yellow

* -  Refer to Applicable Lane Change Assistance Wiring Diagram

*2 -  For USA Only

*3 -  Not for USA

*4 -  For Vehicles with Lane Change Assistance
