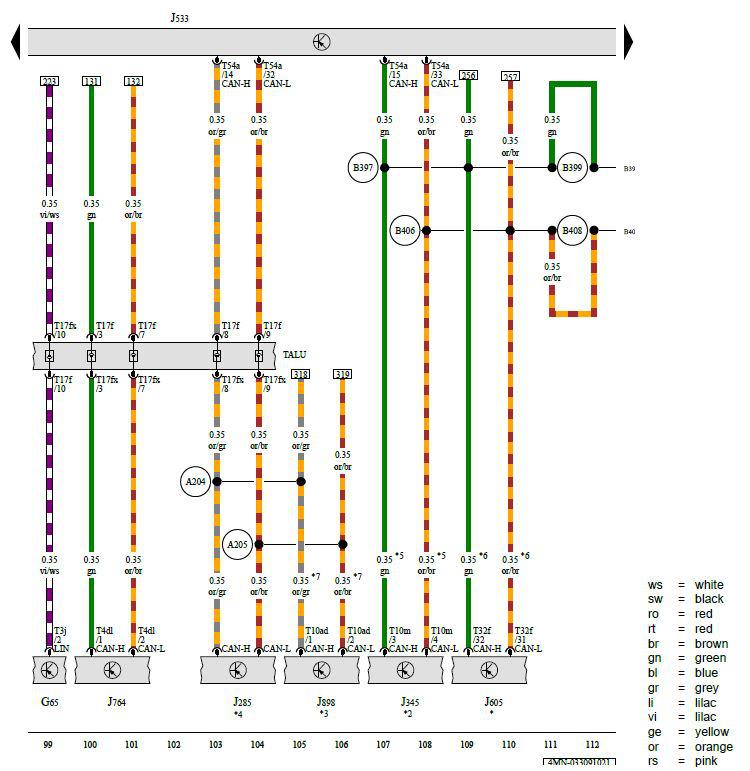

High Pressure Sensor, Instrument Cluster Control Module, Towing Recognition Control Module, Data Bus on Board Diagnostic Interface, Rear Lid Control Module, Electronic Steering Column Lock Control Module, Windshield Projection Head Up Display Control Module
G65 - High Pressure Sensor
J285 - Instrument Cluster Control Module
J345 - Towing Recognition Control Module
J533 - Data Bus on Board Diagnostic Interface
J605 - Rear Lid Control Module
J764 - Electronic Steering Column Lock Control Module
J898 - Windshield Projection Head Up Display Control Module
T3j - 3-Pin Connector, Black
T4dl - 4-Pin Connector, Black
T10ad - 10-Pin Connector, Black
T10m - 10-Pin Connector, Black
T17f - 17-Pin Connector, Red
T17fx - 17-Pin Connector, Red
T32f - 32-Pin Connector, Naturally Cloudy
T54a - 54-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
A204 - Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205 - Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B399 - Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B406 - Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B408 - Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
* - Refer to Applicable Power Rear Lid Wiring Diagram
*2 - Refer to the Wiring Diagram for Trailer Towing
*3 - Refer to Applicable Windshield Projection Wiring Diagram
*4 - Refer to Applicable Wiring Diagram for Instrument Cluster
*5 - For Vehicles with Trailer Hitch
*6 - For Vehicles with Power Rear Lid Opening
*7 - For Vehicles with Windshield Projection
