Windshield Defogger Control Module -J505-, REMOVING AND INSTALLING: Removing

-- Switch off the ignition.

-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Remove the right front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Loosen and remove the right front carpet. Refer to CARPET, REMOVING AND INSTALLING .

-- Disconnect the front seat mount. Refer to OVERVIEW - FRONT SEAT .

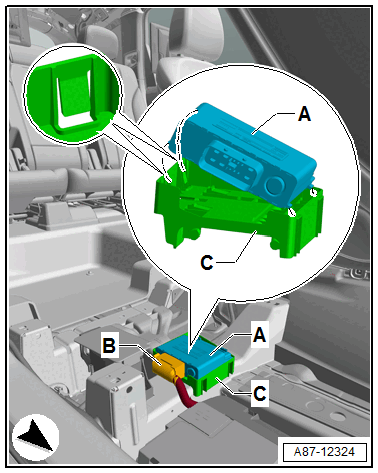

-- Release the locking tabs on the bracket -C-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the Windshield Defogger Control Module -J505- -A- upward and out.

-- Release the connector -B- and remove it from the Windshield Defogger Control Module -J505- -A-.
