Garage Door Opener Control Module, Removing And Installing: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

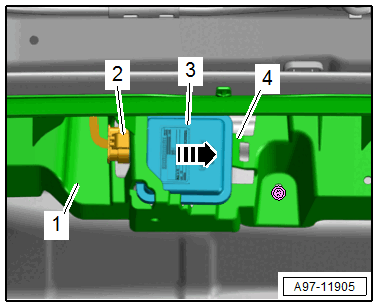

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -4-.

-- Remove the control module -3- from the mount -1- in direction of -arrow-.
